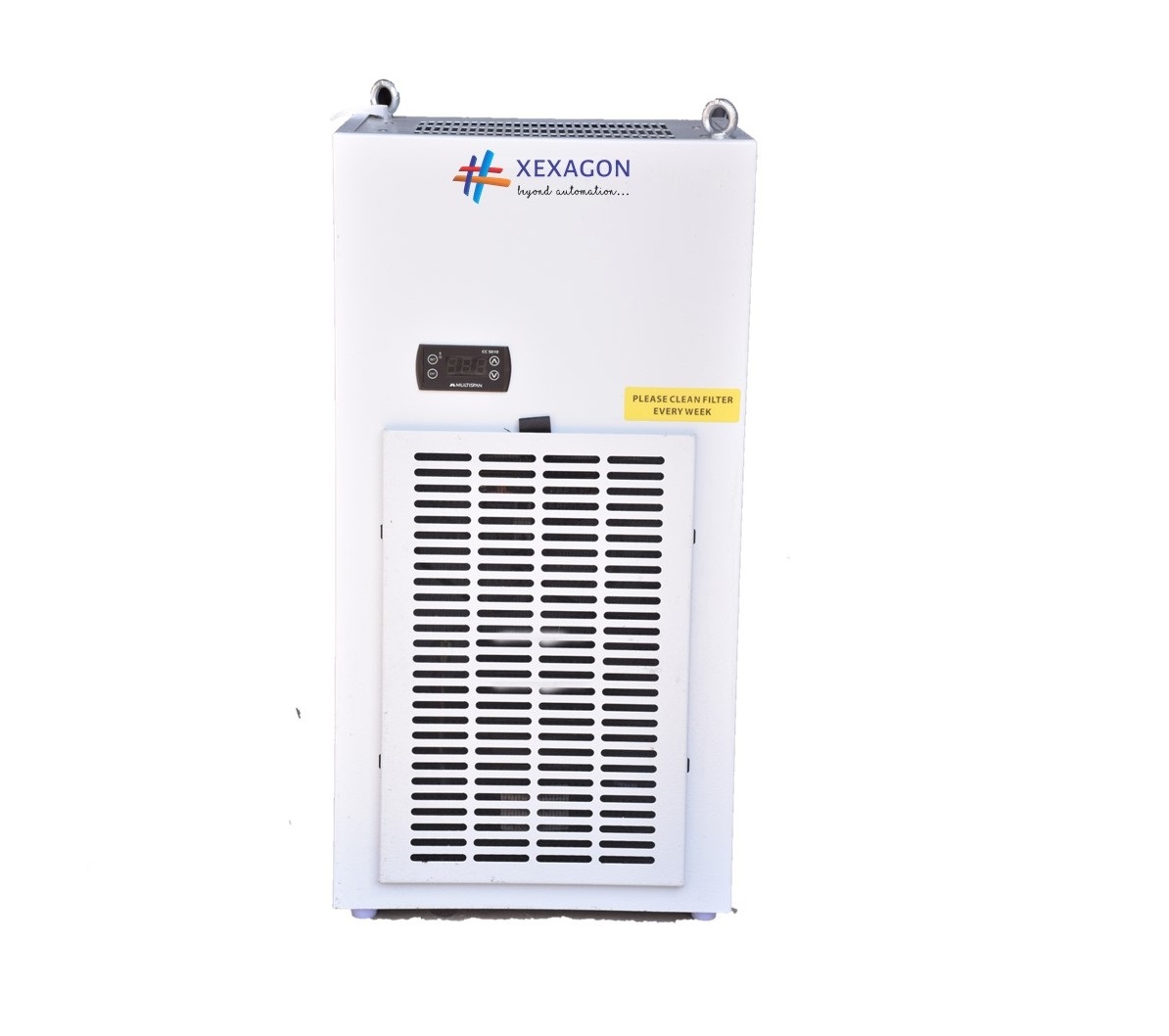

XEXAGON PANEL AC -800W (XAC-080)

PAC MODEL NO. : XAC-080
COOLING CAPACITY : 800W / 0.24 TR / 800 Kcal/Hr
REFRIGERANT : R134a
POWER SUPPLY : 1 PH, 230 V, 60 HZ
STARTING CURRENT : 10.1 A
MAX CURRENT : 3.8 A
POWER CONSUMPTION : 0.26 KW
AIR FLOW VOLUME (SYSTEM/UNIMPEDED): Ambient air circuit: 435 / 550 m3/h
Cabinet air circuit: 200 / 250 m3/h

NOISE : >90 DBA
NO. OF COMPRESSOR CIRCUITS : 1
OUTLET COOLING AIR TEMPERATURE : 28 ± 2° C
TYPE OF COMPRESSOR : RECIPROCATING
TYPE OF CONTROLLER : MICROPROCESSOR
TYPE OF CONDENSER / MOC : COPPER TUBES WITH ALUMINIUM FINS
TYPE OF EXPANSION DEVICE : CAPILLARY
TYPE OF EVAPORATOR / MOC : COPPER TUBES WITH ALUMINIUM FINS
MOC OF PAC FRAME : CRCA
TYPE OF SURFACE COATING : POWDER COATED
COLOR : RAL 7035
TYPE OF MOUNTING : SIDE
DIMENSIONS OF PAC : 310W x 277D x 575H mm
WEIGHT OF PAC : 25 KG
