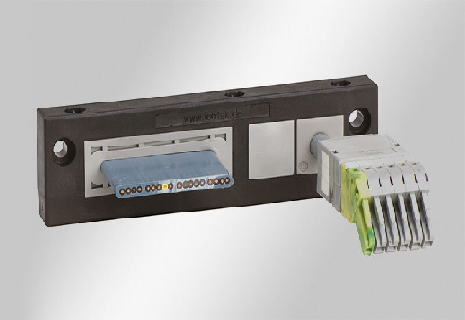

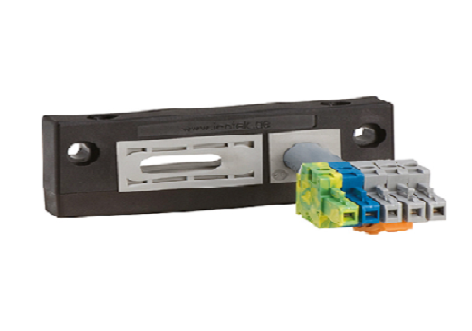

XN-FL Cable Entry Frame (Flat Cable)
XN-FL Cable Entry Frame (Flat Cable) - Image 2
XN-FL Cable Entry Frame (Flat Cable) - Image 3
XN-FL Cable Entry Frame (Flat Cable) - Image 4
, ,

XN-FL Cable Entry Frame (Flat Cable)

Compare

XN-FL Cable Entry Frame

Material : PA 66 Halogen free

Colour : Black

Temperature : -40° C to 140° C (Static)

IP Rating : IP54 / IP65

Flame Class : UL94: V0

Frame Height : 17mm

₹2,000.00 ₹3,500.00

Inquire on WhatsApp
Compare
Add to quote

XN-FL Cable Entry Frame

Part No. : XNL -FL/A

Mounting options Screw type mounting
For max. no. of cables 1
Length 72 mm
Width 39 mm
Height 17 mm
Mounting height 17 mm
Cut-out size 43 × 24 mm
No. of screw holes 2
Diam. of screw holes 5.8 mm
Screw material Mild steel, galvanically zinc plated
Suitable for grommets 1 x FT-1
Part No. : XNL-FL/B
Mounting options Screw type mounting
For max. no. of cables 1
Length 98 mm
Width 39 mm
Height 17 mm
Mounting height 17 mm
Cut-out size 65 × 24 mm
No. of screw holes 2
Diam. of screw holes 5.8 mm
Screw material Mild steel, galvanically zinc plated
Suitable for grommets 1 x FT-2
Part No. : XNL-FL/C
Mounting options Screw type mounting
For max. no. of cables 5
Length 98 mm
Width 39 mm
Height 17 mm
Mounting height 17 mm
Cut-out size 65 × 24 mm
No. of screw holes 2
Diam. of screw holes 5.8 mm
Screw material Mild steel, galvanically zinc plated
Suitable for grommets 1 x XN small, 1 x FT-1
Part No. : XNL-FL/D
Mounting options Screw type mounting
For max. no. of cables 1
Length 120 mm
Width 39 mm
Height 17 mm
Mounting height 17 mm
Cut-out size 86 × 24 mm
No. of screw holes 2
Diam. of screw holes 5.8 mm
Screw material Mild steel, galvanically zinc plated
Suitable for grommets 1 x FT-3

Part No. : XNL-FL/E

Mounting options Screw type mounting
For max. no. of cables 5
Length 120 mm
Width 39 mm
Height 17 mm
Mounting height 17 mm
Cut-out size 86 × 24 mm
No. of screw holes 2
Diam. of screw holes 5.8 mm
Screw material Mild steel, galvanically zinc plated
Suitable for grommets 1 x XN small, 1 x FT-2
Part No. : XNL-FL/F
Mounting options Screw type mounting
For max. no. of cables 2
Length 120 mm
Width 39 mm
Height 17 mm
Mounting height 17 mm
Cut-out size 86 × 24 mm
No. of screw holes 2
Diam. of screw holes 5.8 mm
Screw material Mild steel, galvanically zinc plated
Suitable for grommets 2 x FT-1
Part No. : XNL-FL/G
Mounting options Screw type mounting
For max. no. of cables 9
Length 120 mm
Width 39 mm
Height 17 mm
Mounting height 17 mm
Cut-out size 86 × 24 mm
No. of screw holes 2
Diam. of screw holes 5.8 mm
Screw material Mild steel, galvanically zinc plated
Suitable for grommets 2 x XN small, 1 x FT-1

Part No. : XNL-FL/H

Mounting options Screw type mounting
For max. no. of cables 9
Length 147 mm
Width 39 mm
Height 17 mm
Mounting height 17 mm
Cut-out size 112 × 24 mm
No. of screw holes 2
Diam. of screw holes 5.8 mm
Screw material Mild steel, galvanically zinc plated
Suitable for grommets 2 x XN small, 1 x FT-2
Part No. : XNL-FL/I
Mounting options Screw type mounting
For max. no. of cables 6
Length 147 mm
Width 39 mm
Height 17 mm
Mounting height 17 mm
Cut-out size 112 × 24 mm
No. of screw holes 2
Diam. of screw holes 5.8 mm
Screw material Mild steel, galvanically zinc plated
Suitable for grommets 1 x XN small, 2 x FT-1

Part No. : XNL-FL/J

Mounting options Screw type mounting
For max. no. of cables 13
Length 147 mm
Width 39 mm
Height 17 mm
Mounting height 17 mm
Cut-out size 112 × 24 mm
No. of screw holes 2
Diam. of screw holes 5.8 mm
Screw material Mild steel, galvanically zinc plated
Suitable for grommets 3 x XN small, 1 x FT-1

Part No. : XNL-FL/K

Mounting options Screw type mounting
For max. no. of cables 2
Length 147 mm
Width 39 mm
Height 17 mm
Mounting height 17 mm
Cut-out size 112 × 24 mm
No. of screw holes 2
Diam. of screw holes 5.8 mm
Screw material Mild steel, galvanically zinc plated
Suitable for grommets 1 x FT-1, 1 x FT-2

Part No. : XNL-FL/L

Mounting options Screw type mounting
For max. no. of cables 1
Length 147 mm
Width 39 mm
Height 17 mm
Mounting height 17 mm
Cut-out size 112 × 24 mm
No. of screw holes 2
Diam. of screw holes 5.8 mm
Screw material Mild steel, galvanically zinc plated
Suitable for grommets 1 x FT-4







Xexagon Cable Entry System
