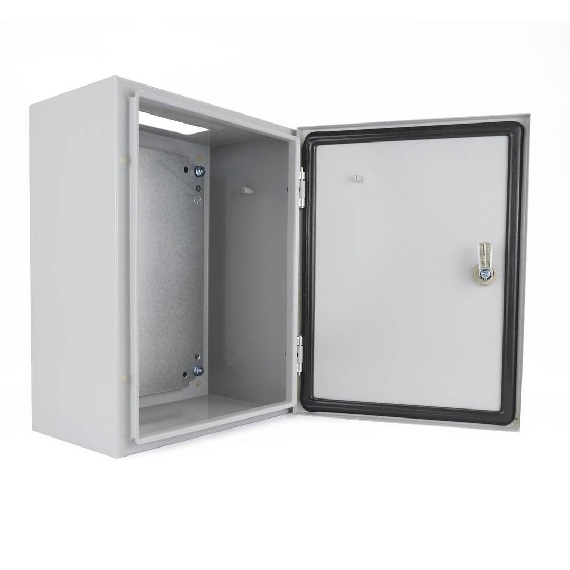

XNCP210FD / 290RD front / back opening door control box
XNCP210FD / 290RD front / back opening door control box
Effective mounting depth : CP210FD：201.5mm; CP290RD：290mm
The max customized size : Front plate width<700mm; Front plate height<800mm
Protection grade : Back opening door: IP54; Backplate fixed by screw :IP65
Material : Profiles and Handle: aluminum alloy 6063
Angle parts :die casting aluminum alloy 102
Handle fixation: PA66
Color : Profiles and Handle: natural colour of anodic aluminum oxide
Angle parts : rock grey, similar to RAL7012
Back opening door (backplate): 3mm aluminum plate
Surface spraying: silver grey
Handle fixation: silver grey
ASK FOR PRICE
Compare
XNCP210FD / 290RD front / back opening door control box
– CP210FD front opening door and CP290RD back opening door control box add the function of front/back opening door on the base of CP210 control box, and realize the max depth of box can reach 372mm through
the combination of multiple profiles, to satisfy requirement of different inner installation space.
– Box size can be customized according to client requirement.
