XNCP60 / 105 / 155 / 180 series cantilever control box
XNCP60 / 105 / 155 / 180 series cantilever control box - Image 2
, ,

XNCP60 / 105 / 155 / 180 series cantilever control box

Compare

XNCP60 / 105 / 155 / 180 series cantilever control box

Effective mounting depth :
CP60： 60mm (back mounted front plate); 66mm (front mounted front plate)
CP105: 105mm (back mounted front plate); 111mm (front mounted front plate)
CP155: 152.5mm (back mounted front plate); 158.5mm (front mounted front plate)
CP180: 176.5mm (back mounted front plate); 182.5mm (front mounted front plate)

The max customized size : Front plate width<700mm; Front plate height<800mm

Protection grade : Back opening door: IP54; Backplate fixed by screw : IP65

Material: profiles and Handle: aluminum alloy 6063
Angle parts and Handle fixation: die casting aluminum alloy 102

Color:
profiles and Handle: natural colour of anodic aluminum oxide
Angle parts and Handle : rock grey, similar to RAL7012
Back opening door (backplate): 3mm aluminum plate
Surface spraying: silver grey

ASK FOR PRICE

Compare
Add to quote

XNCP60 / 105 / 155 / 180 series cantilever control box

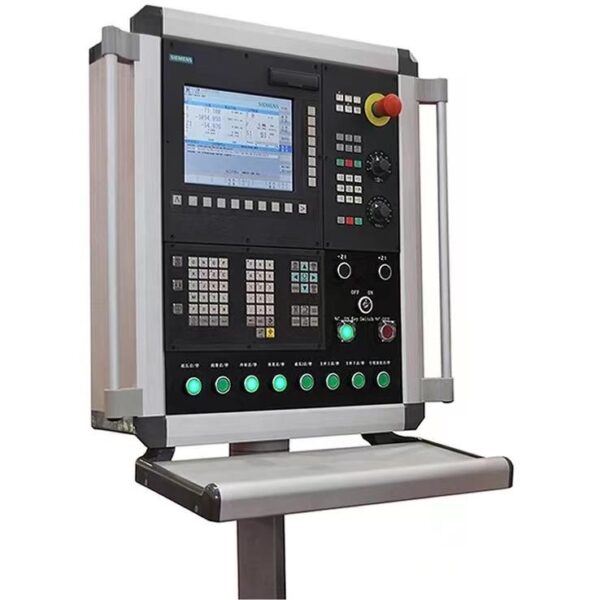

* CP60/105/155/180 series control box are joined together by high quality of anodic aluminum oxide profiles and aluminum die casting angle parts. narrow outline frame design is more in accord
with modern aesthetic. The surface anodic aluminum oxide profiles are easier to wipe so that the box can keep bright.
* The front plate can be installed in the front or back to realize different visual effect Control box widely apply in the installation of various human-computer interface and accessory on CNC machine assembly line and special equipment, equipped with cantilever or support system, fully meet the requirement of actual operation.
* Box size can be customized according to client requirement
