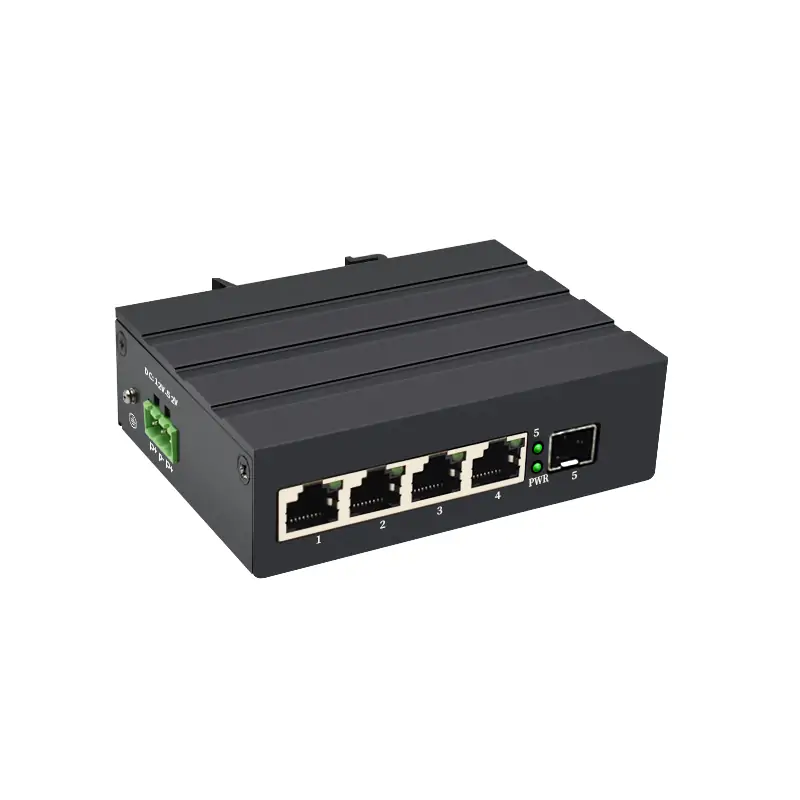

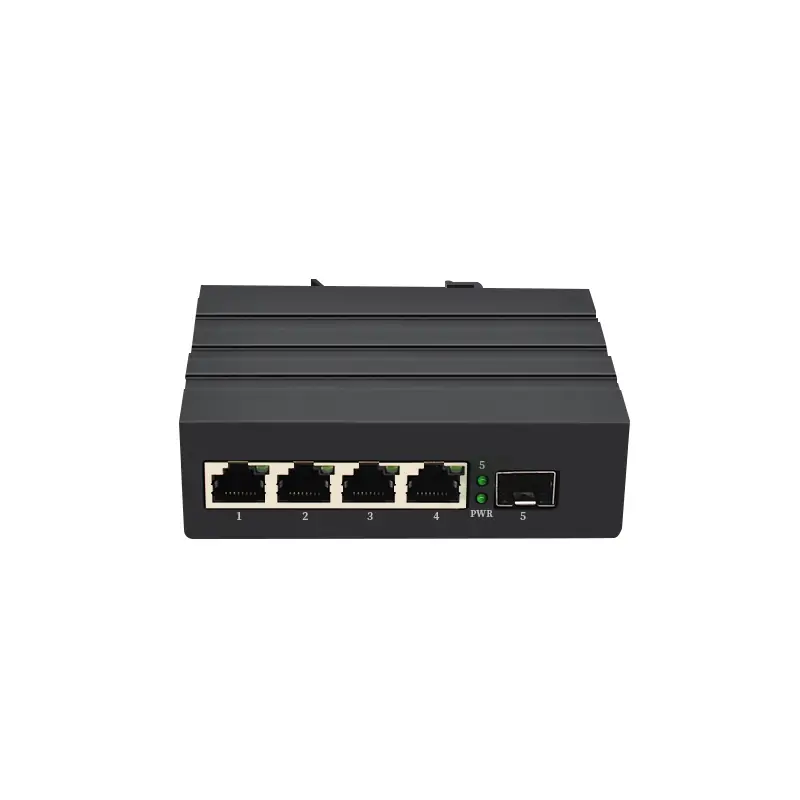

The ISF401  is a 5-port unmanaged industrial switch designed for reliable performance in challenging environments. It features 4 x 10/100Base-TX RJ45 Ethernet ports and 1 x 100Base-SX/LX SC optical port, providing flexible networking options for various industrial applications. This switch is ideal for uses such as industrial control automation, road traffic management, building automation systems, and computer room monitoring. The ISF401-1005 ensures stable and efficient operation, making it an essential element for constructing a robust Industrial Internet of Things (IIoT) infrastructure.

₹2,288.00 ₹2,974.00

Inquire on WhatsApp
Compare
Add to quote

The ISF401  is a 5-port unmanaged industrial switch designed for reliable performance in challenging environments. It features 4 x 10/100Base-TX RJ45 Ethernet ports and 1 x 100Base-SX/LX SC optical port, providing flexible networking options for various industrial applications. This switch is ideal for uses such as industrial control automation, road traffic management, building automation systems, and computer room monitoring. The ISF401-1005 ensures stable and efficient operation, making it an essential element for constructing a robust Industrial Internet of Things (IIoT) infrastructure.

Categories: , ,
Standards and protocols IEEE802.310Base-T
IEEE802.3u100Base-TX
IEEE802.3z100Base-SX/LX standards
IEEE 802.3x flow control
Interface information RJ45 port: 4 10/100M Base-T X port
Single-mode SC optical port: 1 100Base-X optical port
Mechanical properties Shell material: metal shell
Appearance dimensions (length*depth*height): 108 mm× 80 mm× 33 mm

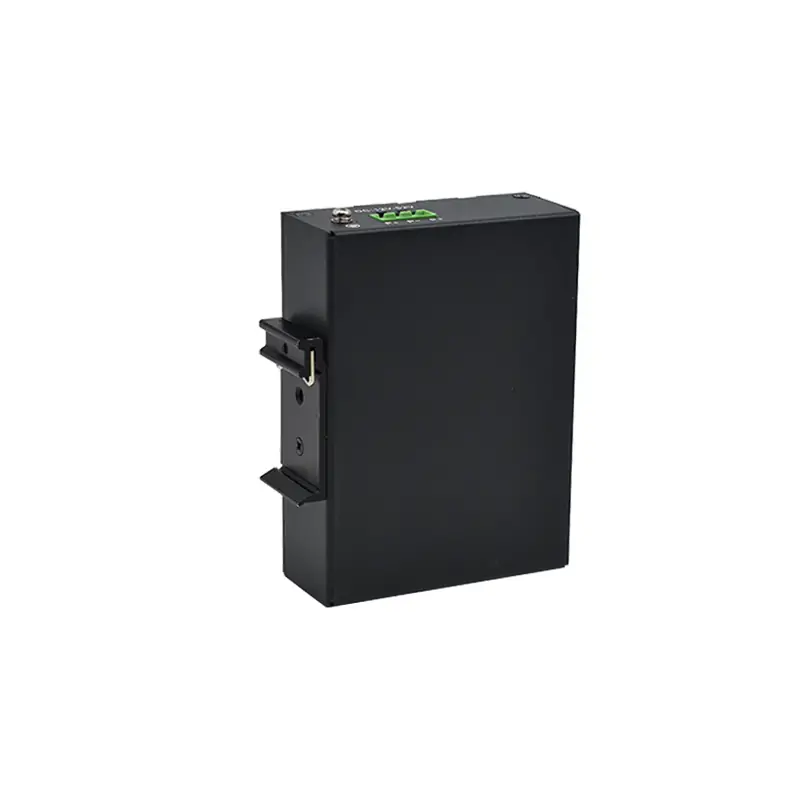

Installation method: DIN rail type
Heat dissipation method: natural cooling, no fan
Weight: < 450 G
Environmental properties Working temperature: -40 ℃ ～+ 85 ℃
Storage temperature: -40 ℃ ～+85℃
Relative humidity: 5% ~ 95% (non-condensing)
Exchange properties Bandwidth: 1Gbps
Packet forwarding rate (whole machine) : 0.75 Mpps
Exchange method: store-and-forward
MAC table : 2K
Case space : 512K
Power supply Input voltage: DC 12 V-57V (dual redundant)
Power interface: 3- core Phoenix terminal
Power supply protection: positive and negative pole misconnection protection
Power consumption: < 5 W
indicator light Port light (fluctuation switch control):Indicator light: 100M Link/ACT green;
Power light: green
      Security properties Shell protection: IP40
Surge impact IEC61000-4-5 : (optional)Signal end: common mode ± 4KV, differential mode ± 2KVPower supply end: common mode ± 4KV, differential mode ± 2KV
Anti-static interference IEC61000-4-2 : contact discharge ± 8KV, air discharge ± 15KV
Pulse immunity IEC61000-4-4 : signal terminal: ± 2KV, power terminal: ± 2KV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
MTBF: 100000 hours
warranty period 5 years
