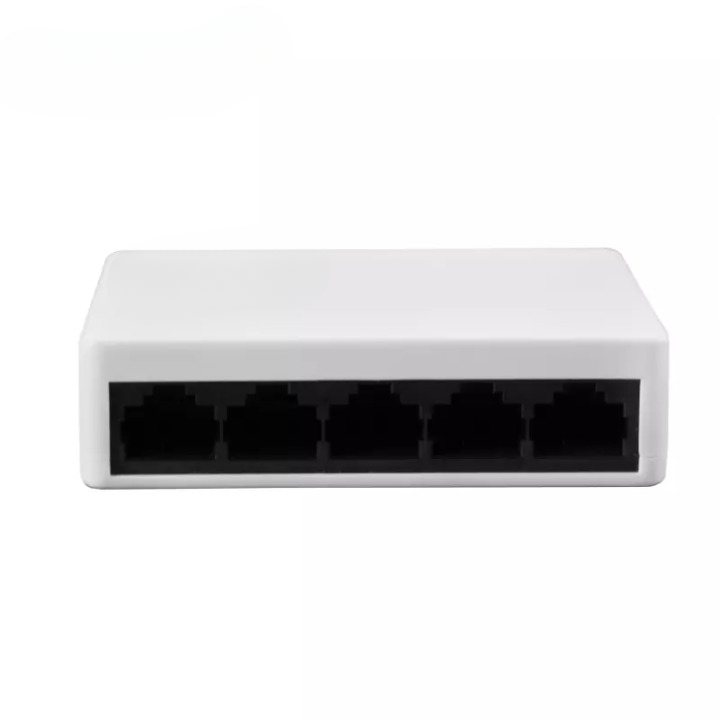

The 5 Port Ethernet Switch is a reliable 100Mbps Fast Ethernet switch specifically designed for small to medium-sized network environments. With five adaptive 10/100Mbps ports, this switch supports automatic cross/parallel twisted-pair cable detection (Auto MDI/MDIX), making it easy to connect multiple devices without the need for special cables. Each port can achieve a maximum bidirectional transmission rate of 200Mbps, providing efficient data transfer in your network.

Compare
Add to quote

The 5 Port Ethernet Switch is a reliable 100Mbps Fast Ethernet switch specifically designed for small to medium-sized network environments. With five adaptive 10/100Mbps ports, this switch supports automatic cross/parallel twisted-pair cable detection (Auto MDI/MDIX), making it easy to connect multiple devices without the need for special cables. Each port can achieve a maximum bidirectional transmission rate of 200Mbps, providing efficient data transfer in your network.

Categories: , , ,

Key Features

  • 5 10/100Base-TX Ports: Equipped with five adaptive ports that support speeds up to 100Mbps for flexible connectivity.
  • 2K MAC Address Table: Supports a large MAC address table, enabling effective network management and performance.
  • Automatic Cross Detection: All ports support half/full duplex auto-negotiation and automatic MDI/MDI-X function, allowing seamless integration into various network setups.
  • Line-Speed Forwarding: Ensures all ports support line-speed forwarding for smooth and efficient data transmission.
  • Desktop and Wall-Mount Installation: Designed for versatility, this switch can be installed on a desktop or mounted on a wall to fit your spatial requirements.
  • Plug-and-Play: Easy to set up and use without any configuration, allowing for quick deployment in your network.
  • Durable Design: Constructed with a plastic shell that provides excellent heat dissipation, ensuring stable and long-term operation of the product.

Product Parameters

Standards & Protocol IEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE 802.3x flow control
Interface information RJ45 port: 5 10/100M Base-TX ethernet ports (standard RJ45)
10/100Mbps adaptive
10Base-T: ≤100m (CAT3,4,5 UTP)
100Base-TX: ≤100m (CAT3,4,5 UTP)
Mechanical properties Shell material: plastic shell
Appearance dimensions (length*depth*height): 80mm×51mm×21mm
Installation method: Desktop, Wall-mount
Heat dissipation method: natural cooling, no fan
Weight: 50g
Environmental properties Working temperature: -20℃～+60℃
Storage temperature: -20℃～+85℃
Relative humidity: 5% ~ 95% (non-condensing)
Exchange properties Bandwidth:1.0Gbps
Packet forwarding rate (whole machine) : 0.745Mpps
Exchange method: store-and-forward
MAC table : 2K
Case space : 768K
Jumbo frame: 2K
Power supply Input voltage: DC 5V
Power consumption: < 5 W
indicator light Port light (fluctuation switch control):Link/Act: Green (10/100M)
POWER(Power system indicator light): Green
