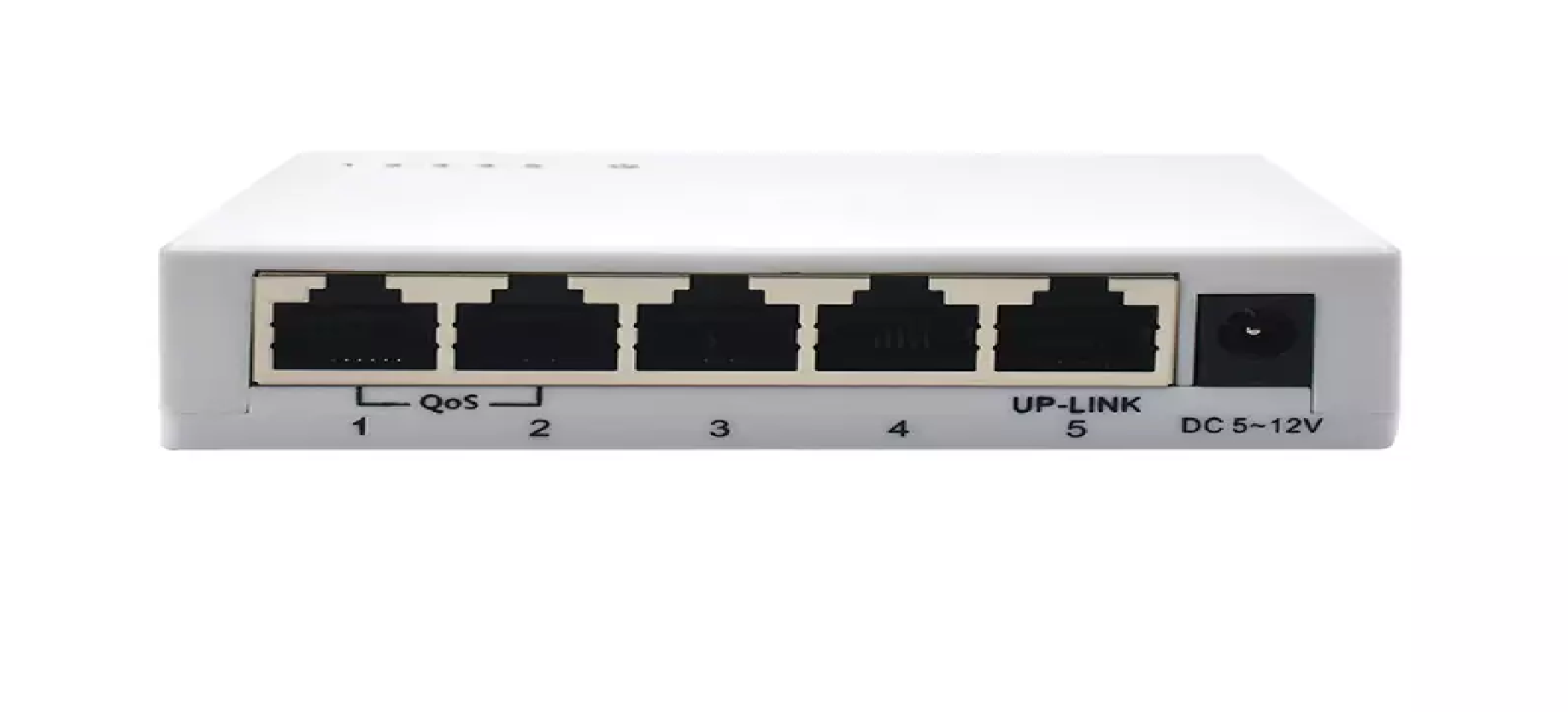

XNHT-SF05S-V2
The Fast Ethernet Switch is a reliable 5-port unmanaged switch designed to enhance connectivity in small to medium-sized business environments, offices, hotels, and home networks. With five 10/100Base-TX RJ45 standard ports, this switch offers seamless plug-and-play functionality, allowing for easy installation without the need for configuration. Each port complies with international standards, ensuring broad compatibility and performance.
This switch features DIP switches that allow users to easily switch between VLAN mode, QoS mode, and Extend mode, enabling port isolation and maintaining high data confidentiality. The QoS function effectively manages network traffic, reduces congestion, and prioritizes bandwidth for essential services, particularly for network data on ports 1 and 2.
Compare
The Fast Ethernet Switch is a reliable 5-port unmanaged switch designed to enhance connectivity in small to medium-sized business environments, offices, hotels, and home networks. With five 10/100Base-TX RJ45 standard ports, this switch offers seamless plug-and-play functionality, allowing for easy installation without the need for configuration. Each port complies with international standards, ensuring broad compatibility and performance.
This switch features DIP switches that allow users to easily switch between VLAN mode, QoS mode, and Extend mode, enabling port isolation and maintaining high data confidentiality. The QoS function effectively manages network traffic, reduces congestion, and prioritizes bandwidth for essential services, particularly for network data on ports 1 and 2.
Key Features
- 5 x 10/100Base-TX RJ45 Ports: Equipped with five standard ports that support speeds of 10/100Mbps auto-negotiation for flexible connectivity.
- Half/Full Duplex Support: All ports support half/full duplex auto-negotiation to optimize network performance.
- Automatic MDI/MDI-X: Each port features automatic MDI/MDI-X configuration, eliminating the need for crossover cables.
- Wire-Speed Forwarding: All ports support wire-speed forwarding for smooth data transmission across the network.
- Easy Mode Switching: One-key switch functionality allows users to toggle between VLAN, QoS, and Extend modes effortlessly.
- Jumbo Frame Support: Capable of handling 2K jumbo frame transmission for improved data handling efficiency.
- Large MAC Address Table: Supports up to 2K MAC addresses for extensive network management.
- Installation Flexibility: Designed for both desktop and wall-mount installation, providing versatility in setup.
- User-Friendly Design: The plug-and-play operation requires no configuration, making it easy to use.
- Durable Housing: Constructed with a plastic housing that offers excellent heat dissipation, ensuring long-term stable operation.
Product Parameters
| Standards & Protocol | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE 802.1p General Registration Protocol IEEE 802.1Q VLAN IEEE 802.3x flow control |
| Interface information | RJ45 port: 5 10/100M Base-TX ports |
| Mechanical properties | Shell material: Plastic |
| Appearance dimensions (length*depth*height): 95mm×66mm×24mm | |
| Installation method: Desktop | |
| Heat dissipation method: natural cooling, no fan | |
| G.W: < 78g | |
| Environmental properties | Working temperature: -20℃～+60℃ |
| Storage temperature: -20℃～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth: 1Gbps |
| Packet forwarding rate (whole machine) : 0.744Mpps | |
| Exchange method: store-and-forward | |
| MAC table: 2K | |
| Packet buffer: 768Kbit | |
| Jumbo frame: 2k | |
| Power supply | Input voltage: 5-12V |
| Power consumption: < 3W | |
| Indicator | Ethernet port (fluctuation switch control):· Power LED: Green· Port Status LEDs: 10/100M Link/ACT Green· E Switch: (Ports 1-4 forced to 10M for long-distance communication)· Q Switch: (Ports 1-2 data prioritized, passing through port 5 UP-LINK)· V Switch: (Ports 1-4 isolated, each can communicate with port 5 UP-LINK) |
