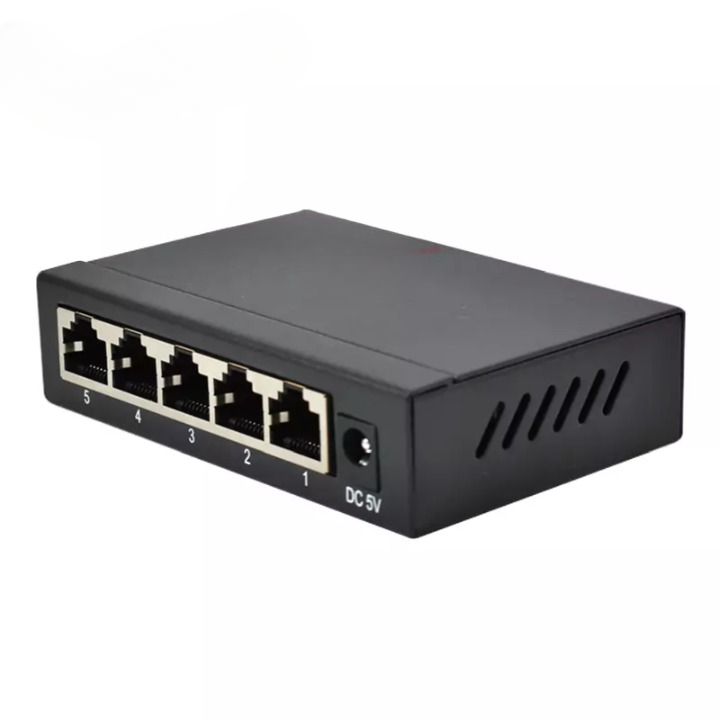

XNHT-SF05T
The Fast Ethernet Network Switch is a reliable solution specifically designed for small to medium-sized network environments. Featuring five adaptive 10/100Mbps ports, this switch supports automatic cross/parallel twisted-pair cable detection (Auto MDI/MDIX), ensuring seamless connectivity without the hassle of special cabling. Each port delivers a maximum bidirectional transmission rate of 200Mbps, making it ideal for building efficient enterprise networks.
Compare
The Fast Ethernet Network Switch is a reliable solution specifically designed for small to medium-sized network environments. Featuring five adaptive 10/100Mbps ports, this switch supports automatic cross/parallel twisted-pair cable detection (Auto MDI/MDIX), ensuring seamless connectivity without the hassle of special cabling. Each port delivers a maximum bidirectional transmission rate of 200Mbps, making it ideal for building efficient enterprise networks.
With its user-friendly design, this switch is easy to install and maintain, making it an excellent choice for businesses looking to enhance their network infrastructure.
Key Features
- 5 10/100Base-TX Ports: Equipped with five adaptive ports that support up to 100Mbps for versatile connectivity.
- Large MAC Address Table: Supports up to 2K MAC addresses for efficient network management.
- Auto-Negotiation: All ports support 10/100Mbps speed auto-negotiation, ensuring optimal performance across devices.
- Duplex Support: Each port supports half/full duplex auto-negotiation for improved network performance.
- Automatic MDI/MDI-X: Features automatic MDI/MDI-X configuration, allowing for easy connection of devices without the need for crossover cables.
- Wire-Speed Forwarding: All ports support line-speed forwarding to ensure smooth and efficient data transmission.
- Flexible Installation: Designed for both desktop and wall-mount installation to accommodate various space requirements.
- Plug-and-Play Operation: Easy to use with no configuration needed, allowing for a quick setup.
- Durable Metal Housing: Constructed with a metal shell that provides excellent heat dissipation, ensuring stable and long-term operation.
Product Parameters
| Protocol | Standard | IEEE802.3 10Base-TIEEE802.3u 100Base-TXIEEE 802.3x flow control |
| Ethernet port Characteristic | Connector Type | 1×5 RJ45 |
| Transmission rate | 10/100Mbps auto-negotiate； | |
| Transmission distance | 10Base-T: ≤100m（CAT3,4,5 UTP）100Base-TX: ≤100m（CAT3,4,5 UTP） | |
| Exchange performance | Forward method | Store-and-forward（full wire-speed） |
| Transmission mode | Half/Full duplex adaptive | |
| MAC address table | 2K | |
| Case space | 768K | |
| Packet Forwarding Rate | 0.744Mpps@64byte | |
| Bandwidth | 1G（non-blocking） | |
| LED indicator | Power indicator | Green, power |
| Link/Act indicator | Yellow, per ethernet port | |
| Power parameters | Input voltage | DC 5-12V |
| Power consumption | ≤3W; | |
| Environment | Operating Temperature | -20℃～60℃ |
| Storage Temperature: | -40℃～85℃ | |
| Operating Humidity | 5%～95% non-condensing | |
| Heat dissipation method | Natural heat dissipation | |
| Physical properties | Size | 97×65×24mm |
| Weight | 230g |
