XNHT-SF08S
, , ,

XNHT-SF08S

Compare

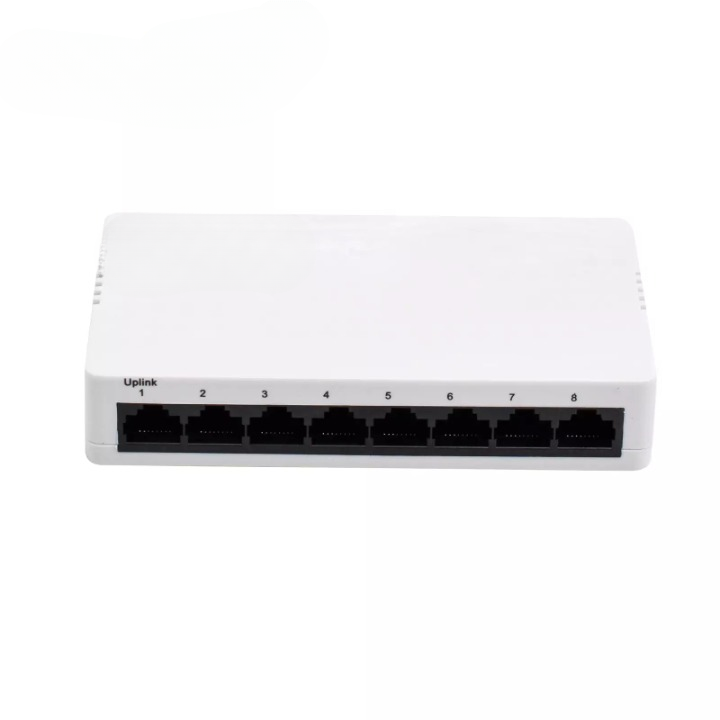

The 100M Fast Ethernet Switch is an ideal networking solution for small to medium-sized environments. Designed for simplicity and efficiency, this switch features 8 adaptive ports that support transmission rates of 10/100Mbps. With its automatic MDI/MDI-X functionality, you can easily connect devices without worrying about crossover cables. Each port offers a maximum bidirectional transmission rate of up to 200Mbps, ensuring smooth and reliable data flow across your network.

Compare
Add to quote

The 100M Fast Ethernet Switch is an ideal networking solution for small to medium-sized environments. Designed for simplicity and efficiency, this switch features 8 adaptive ports that support transmission rates of 10/100Mbps. With its automatic MDI/MDI-X functionality, you can easily connect devices without worrying about crossover cables. Each port offers a maximum bidirectional transmission rate of up to 200Mbps, ensuring smooth and reliable data flow across your network.

Categories: , , ,

Key Features

  • 8 10/100Base-TX Ports: Flexible connectivity options for various devices.
  • Jumbo Frame Support: Capable of transmitting 9K jumbo packets for enhanced performance.
  • Large Address Table: Supports a 4K address table for efficient network management.
  • Automatic Rate Adaptation: All ports adapt to network speeds of 10/100/1000Mbps.
  • Half/Full Duplex Support: Each port can automatically switch between half and full duplex for optimal performance.
  • Wire-Speed Forwarding: Ensures efficient data transmission without bottlenecks.
  • Flexible Installation Options: Can be mounted on a desktop or wall to suit your space.
  • Plug and Play: Easy to set up with no configuration required.
  • Durable Design: Constructed with a plastic shell for excellent heat dissipation, allowing for stable long-term operation.

Product Parameters

Model
Protocol Standard IEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE 802.3x flow control
Ethernet port Characteristic Connector Type 1×8  RJ45
Transmission rate 10/100Mbps auto-negotiate；
Transmission distance 10Base-T: ≤250m（CAT3,4,5 UTP）100Base-TX: ≤100m（CAT3,4,5 UTP）
Exchange performance Forward method Store-and-forward（full wire-speed）
Transmission mode Half/Full duplex adaptive
MAC address table 4K
Case space 1Mb
Packet Forwarding Rate 1.192Mpps@64byte
Bandwidth 1.6G（non-blocking）
LED indicator Power indicator Green, power
Link/Act indicator Yellow, per ethernet port
Power parameters Input voltage DC 5-12V
Power consumption ≤3W;
Environment Operating Temperature -20℃～60℃
Storage Temperature: -40℃～85℃
Operating Humidity 5%～95% non-condensing
Heat dissipation method Natural heat dissipation
Physical properties Size 130×76×25mm
Weight 120g
