XNHT-SF08T

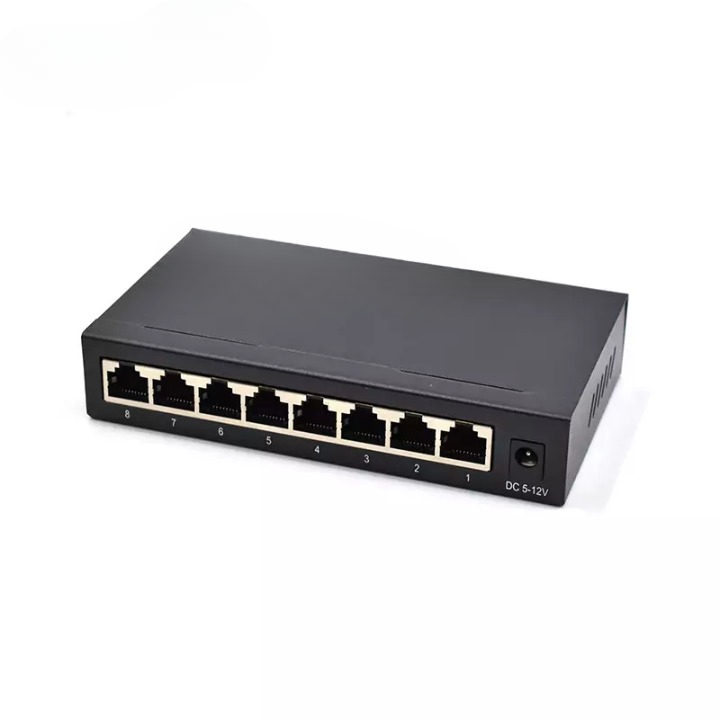

The Switch Ethernet 8 Ports is a reliable 100M Fast Ethernet switch specifically designed for small to medium-sized network environments. With 8 adaptive ports that support transmission rates of 10/100Mbps, this switch provides excellent connectivity and performance. Each port features Auto MDI/MDI-X functionality, allowing for automatic crossover detection to simplify network setup. With a maximum bidirectional transmission rate of 200Mbps per port, this switch is an ideal choice for building efficient corporate networks.
Compare
The Switch Ethernet 8 Ports is a reliable 100M Fast Ethernet switch specifically designed for small to medium-sized network environments. With 8 adaptive ports that support transmission rates of 10/100Mbps, this switch provides excellent connectivity and performance. Each port features Auto MDI/MDI-X functionality, allowing for automatic crossover detection to simplify network setup. With a maximum bidirectional transmission rate of 200Mbps per port, this switch is an ideal choice for building efficient corporate networks.
Key Features
- 8 x 10/100Base-TX Ports: Flexible connectivity for a variety of devices in your network.
- Jumbo Frame Support: Capable of transmitting 9K jumbo packets for improved performance.
- Large Address Table: Supports a 4K address table for efficient network management.
- Automatic Rate Adaptation: All ports adapt to 10/100Mbps speeds automatically.
- Half/Full Duplex Support: Automatic adaptation for optimal performance on all ports.
- Wire-Speed Forwarding: Ensures smooth data transmission without congestion.
- Flexible Installation Options: Compatible with both desktop and wall-mounted setups.
- Plug and Play: Easy operation with no configuration required.
- Durable Metal Housing: Provides excellent heat dissipation for long-term stability and reliable operation.
Product Parameters
| Protocol | Standard | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE 802.3x flow control |
| Ethernet port Characteristic | Connector Type | 1×8 RJ45 |
| Transmission rate | 10/100Mbps auto-negotiate； | |
| Transmission distance | 10Base-T: ≤250m（CAT3,4,5 UTP）100Base-TX: ≤100m（CAT3,4,5 UTP） | |
| Exchange performance | Forward method | Store-and-forward（full wire-speed） |
| Transmission mode | Half/Full duplex adaptive | |
| MAC address table | 4K | |
| Case space | 1Mb | |
| Packet Forwarding Rate | 1.192Mpps@64byte | |
| Bandwidth | 1.6G（non-blocking） | |
| LED indicator | Power indicator | Green, power |
| Link/Act indicator | Yellow, per ethernet port | |
| Power parameters | Input voltage | DC 5-12V |
| Power consumption | ≤3W; | |
| Environment | Operating Temperature | -20℃～60℃ |
| Storage Temperature: | -40℃～85℃ | |
| Operating Humidity | 5%～95% non-condensing | |
| Heat dissipation method | Natural heat dissipation | |
| Physical properties | Size | 130×76×25mm |
| Weight | 120g |
