XNHT-SF16-V2

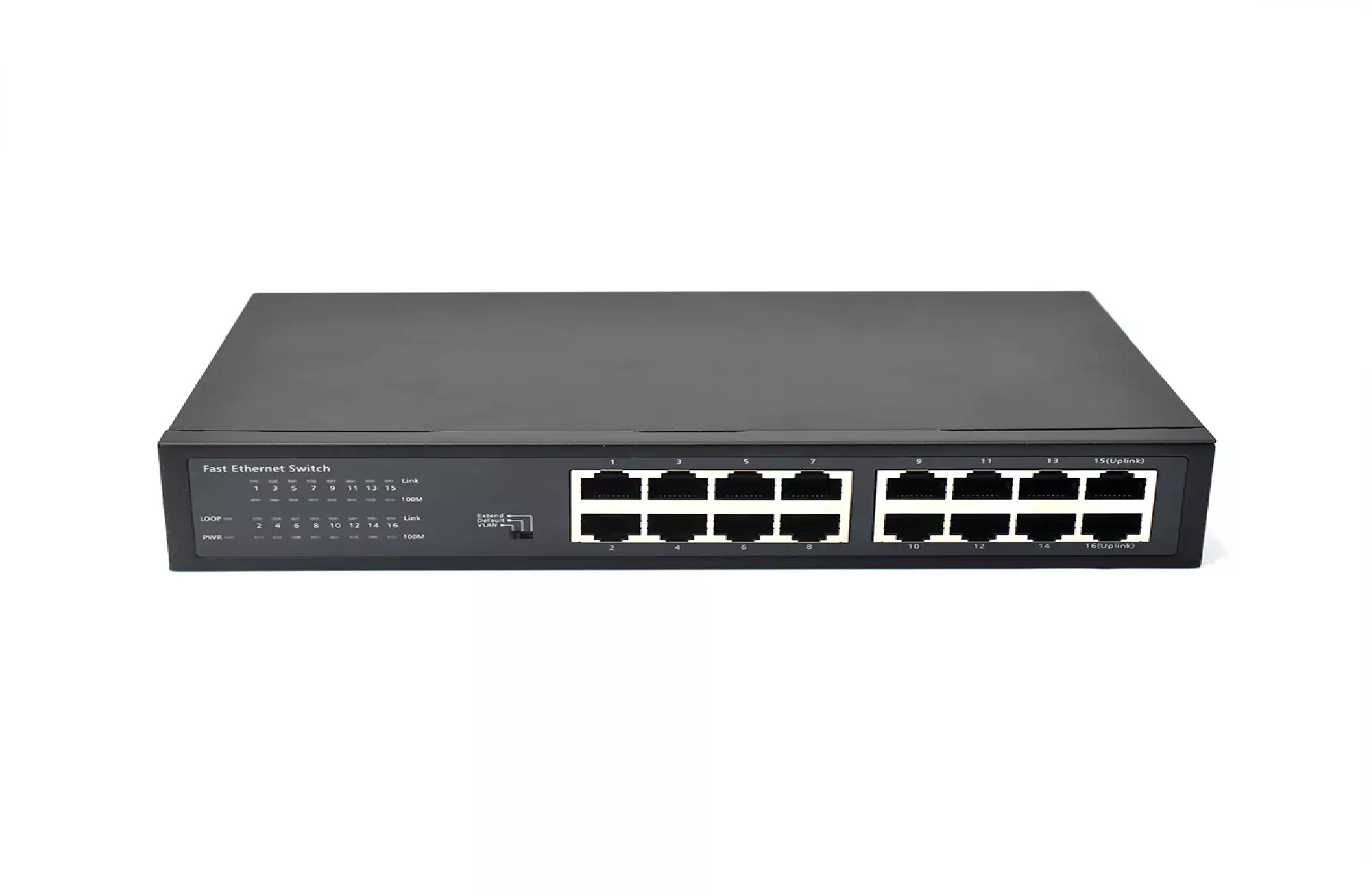

The 16 Port Ethernet Switch is a high-performance 100M intelligent switch designed for various networking environments, including security video surveillance, hotels, campuses, and small to medium-sized enterprises. Utilizing high-quality, high-speed network ICs, this fanless and silent switch effectively eliminates the noise typically associated with smaller switches, making it ideal for office settings. With 16 RJ45 ports, it provides seamless connectivity for 10/100M Ethernet, ensuring reliable data transmission.
Compare
The 16 Port Ethernet Switch is a high-performance 100M intelligent switch designed for various networking environments, including security video surveillance, hotels, campuses, and small to medium-sized enterprises. Utilizing high-quality, high-speed network ICs, this fanless and silent switch effectively eliminates the noise typically associated with smaller switches, making it ideal for office settings. With 16 RJ45 ports, it provides seamless connectivity for 10/100M Ethernet, ensuring reliable data transmission.
This switch supports three working modes, allowing for easy switching through a user-friendly DIP switch. Its intuitive design simplifies management and maintenance, making it a versatile choice for diverse applications.
Key Features
- 16 x 10/100Base-TX RJ45 Ports: Offers ample connectivity for multiple devices.
- Jumbo Frame Support: Capable of handling 9K jumbo frames for enhanced performance.
- Large Address Table: Supports an 8K MAC address table for efficient network management.
- Rate Adaptation: All ports support automatic adaptation to 10/100Mbps speeds.
- Half/Full Duplex Support: Each port automatically adjusts for optimal performance.
- Line-Speed Forwarding: Ensures smooth data transmission without bottlenecks.
- Flexible Installation Options: Suitable for both desktop and wall-mounted setups.
- Status Indicators: Panel indicators monitor working status and assist in fault analysis.
- Three-Position DIP Switch: Easily switch between VLAN, Default, and Extend modes.
- Plug and Play: Simple operation with no configuration required.
- Durable Metal Housing: Provides excellent heat dissipation for long-term stability and reliable operation.
Product Parameters
| Standards & Protocol | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE 802.1p tagged frames IEEE 802.3x flow control |
| Interface information | RJ45 port: 16 10/100M Base-TX ethernet ports (standard RJ45) |
| 10/100Mbps adaptive | |
| 10Base-T: ≤250m (CAT3,4,5 UTP) | |
| 100Base-TX: ≤100m (CAT3,4,5 UTP) | |
| Mechanical properties | Shell material: metal shell |
| Appearance dimensions (length*depth*height): 220mm×162mm×44mm | |
| Installation method: Desktop, Rack-mount | |
| Heat dissipation method: natural cooling, no fan | |
| Weight: 0.9KG | |
| Environmental properties | Working temperature: -20℃～+60℃ |
| Storage temperature: -20℃～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth:3.2Gbps |
| Packet forwarding rate (whole machine) : 2.384Mpps | |
| Exchange method: store-and-forward | |
| MAC table : 4K | |
| Case space : 2m | |
| Jumbo frame: 4K | |
| Power supply | Input voltage: AC100V-240V |
| Power consumption: < 5 W | |
| Indicator light | Port light (fluctuation switch control):Network port light: 100M green;LOOP (loop alarm): green (flashing);Link/Act (link & data): green (flashing);VLAN mode: Port isolation, ports 1-14 are isolated from each other, and all communicate with ports 15 and 16;Default mode: Default mode, supports loop alarm;Extend mode: Monitoring mode, ports 1-14 support 100M speed reduction negotiation, 10M mode supports 250 meters, ports 15-16 serve as aggregation. |
| POWER(Power system indicator light): Green |
