XNHT-SF24-R
, , ,

XNHT-SF24-R

Compare

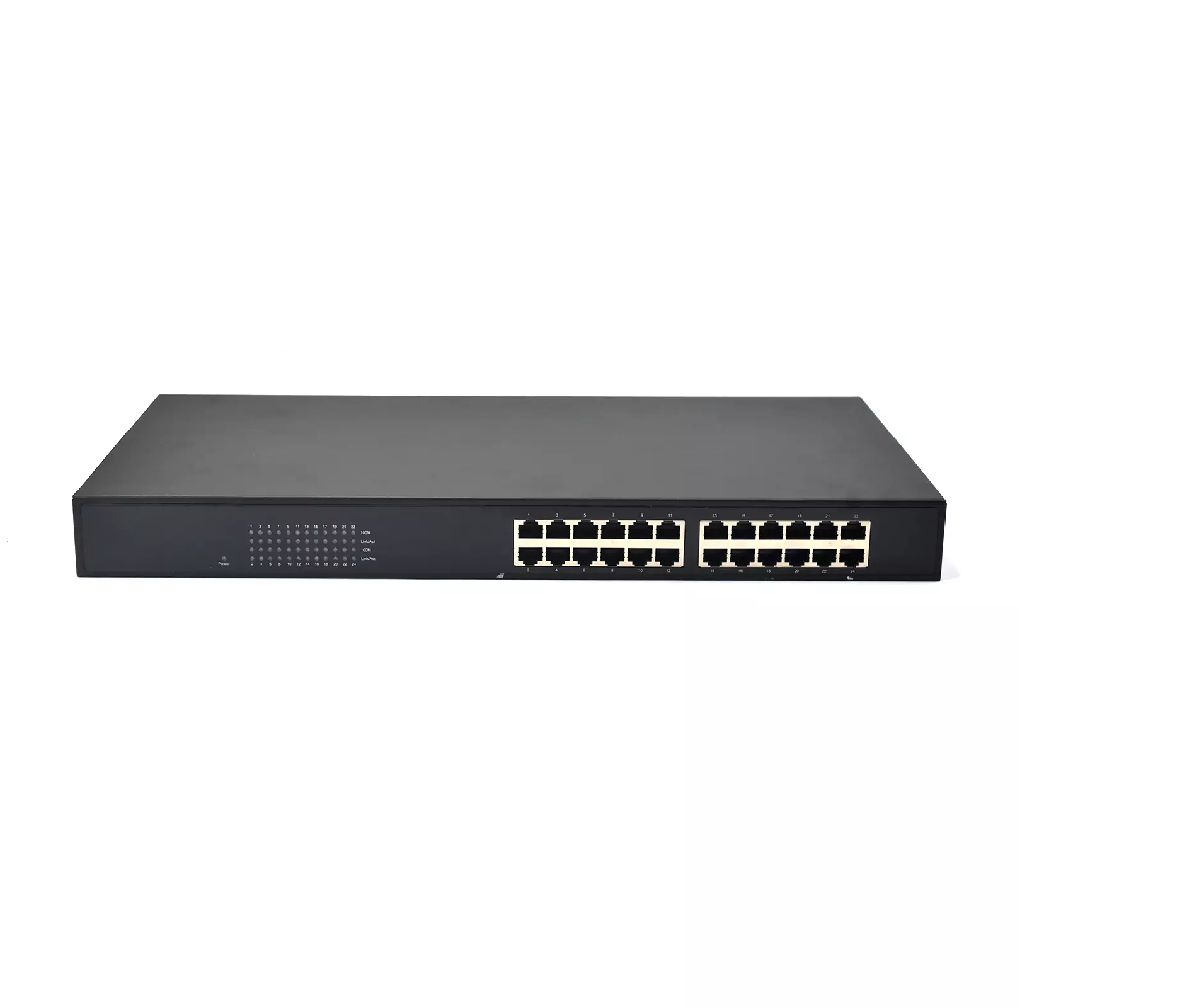

The Rack Mount Ethernet Switch is ideal for small to medium-sized network environments. Featuring 24 adaptive ports with transmission speeds of 10/100 Mbps, this switch offers robust connectivity solutions for your networking needs. Each port supports automatic crossover detection (Auto MDI/MDI-X), allowing for easy setup. With a maximum bidirectional transmission rate of up to 200 Mbps per port, this switch is perfect for building efficient networks in small and medium enterprises.

Designed for ease of installation and maintenance, this switch seamlessly fits into rack-mounted configurations, making it an excellent choice for enhancing network infrastructure.

Compare
Add to quote

The Rack Mount Ethernet Switch is ideal for small to medium-sized network environments. Featuring 24 adaptive ports with transmission speeds of 10/100 Mbps, this switch offers robust connectivity solutions for your networking needs. Each port supports automatic crossover detection (Auto MDI/MDI-X), allowing for easy setup. With a maximum bidirectional transmission rate of up to 200 Mbps per port, this switch is perfect for building efficient networks in small and medium enterprises.

Designed for ease of installation and maintenance, this switch seamlessly fits into rack-mounted configurations, making it an excellent choice for enhancing network infrastructure.

Categories: , , ,

Key Features

  • 24 x 10/100Base-TX Ports: Provides extensive connectivity options for multiple devices.
  • Jumbo Frame Support: Capable of handling 9K jumbo frames to improve data performance.
  • 8K MAC Address Table: Supports a large MAC address table for efficient network management.
  • Automatic Rate Adaptation: All ports automatically adapt to 10/100 Mbps speeds.
  • Half/Full Duplex Support: Each port supports half/full duplex operation with Auto MDI/MDI-X functionality.
  • Line-Speed Forwarding: Ensures smooth and efficient data transmission without bottlenecks.
  • Installation Versatility: Designed for both desktop and rack-mounted installations.
  • Plug-and-Play Functionality: Quick and easy setup with no configuration required.
  • Durable Metal Housing: Excellent heat dissipation ensures stable and long-term operation.

Product Parameters

Protocol Standard IEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE 802.3x flow control
Ethernet port Characteristic Connector Type RJ45
Transmission rate 10/100Mbps auto-negotiate
Transmission distance 10Base-T: ≤250m（CAT3,4,5 UTP）100Base-TX: ≤100m（CAT3,4,5 UTP）
Exchange performance Forward method Store-and-forward（full wire-speed）
Transmission mode Half/Full duplex adaptive
MAC address table 8K
Pocket buffer 1Mb
Jumbo frame 9k
Packet Forwarding Rate 3.5712Mpps@64byte
Bandwidth 4.8G（non-blocking）
LED indicator Power indicator PWR, green
Link/Act indicator 1~24, green
Power parameters Input voltage AC100~240V, 50Hz
Power consumption 5-10W
Environment Operating Temperature -20℃～60℃
Storage Temperature: -40℃～85℃
Operating Humidity 5%～95% non-condensing
Heat dissipation method Natural heat dissipation
Physical properties Size 445mm×231mm×44mm
Weight Net weight:0.8kg,Gross weight: 1kg
