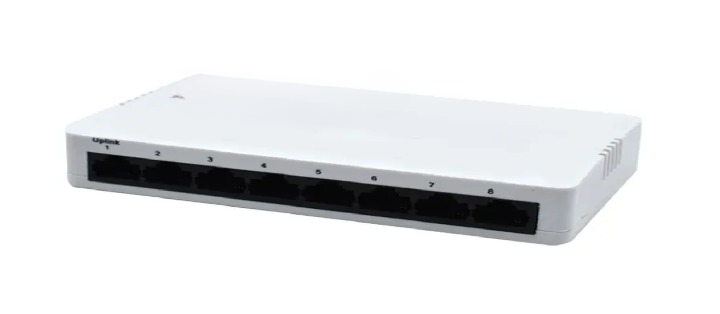

XNHT-SG08S
The XNHT-SG08S is an 8-port Ethernet gigabit switch designed for small to medium-sized network environments. It provides eight adaptive ports, supporting transmission rates of 10/100/1000 Mbps. Each port features automatic crossover/parallel twisted pair detection (Auto MDI/MDI-X), with a maximum bidirectional transmission rate of 2 Gbps. Installation and maintenance are straightforward, making this switch an ideal choice for building efficient corporate networks.
Compare
The XNHT-SG08S is an 8-port Ethernet gigabit switch designed for small to medium-sized network environments. It provides eight adaptive ports, supporting transmission rates of 10/100/1000 Mbps. Each port features automatic crossover/parallel twisted pair detection (Auto MDI/MDI-X), with a maximum bidirectional transmission rate of 2 Gbps. Installation and maintenance are straightforward, making this switch an ideal choice for building efficient corporate networks.
Key Features
- 8 10/100/1000Base-T ports
- Supports transmission of 9K jumbo packets
- Equipped with a 4K MAC address table
- Built-in 1.5 Mbit large buffer space
- All ports support 10/100/1000 Mbps rate adaptation
- Automatic half/full duplex adaptation with Auto MDI/MDI-X functionality
- Wire-speed forwarding on all ports for smoother transmission
- Compatible with both desktop and wall-mounted installations
- Plug-and-play design for easy operation with no configuration needed
- Made with a plastic shell for excellent heat dissipation, ensuring long-term stable operation
Product Parameters
| Protocol | Standard | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE 802.3x flow control |
| Ethernet port Characteristic | Connector Type | 1×8 RJ45 |
| Transmission rate | 10/100/1000Mbps auto-negotiate； | |
| Transmission distance | 10Base-T: ≤250m（CAT3,4,5 UTP）100Base-TX: ≤100m（CAT3,4,5 UTP）1000Base-T: ≤100m（CAT3,4,5 UTP） | |
| Exchange performance | Forward method | Store-and-forward（full wire-speed） |
| Transmission mode | Half/Full duplex adaptive | |
| MAC address table | 4K | |
| Case space | 1.5Mb | |
| Jumbo frame | 9216b | |
| Packet Forwarding Rate | 11.904Mpps@64byte | |
| Bandwidth | 16G（non-blocking） | |
| LED indicator | Power indicator | Green, power |
| Link/Act indicator | Yellow, per ethernet port | |
| Power parameters | Input voltage | DC 5-12V |
| Power consumption | ≤3W; | |
| Environment | Operating Temperature | -20℃～60℃ |
| Storage Temperature: | -40℃～85℃ | |
| Operating Humidity | 5%～95% non-condensing | |
| Heat dissipation method | Natural heat dissipation | |
| Physical properties | Size | 130x76x25mm |
| Weight | 280g |
