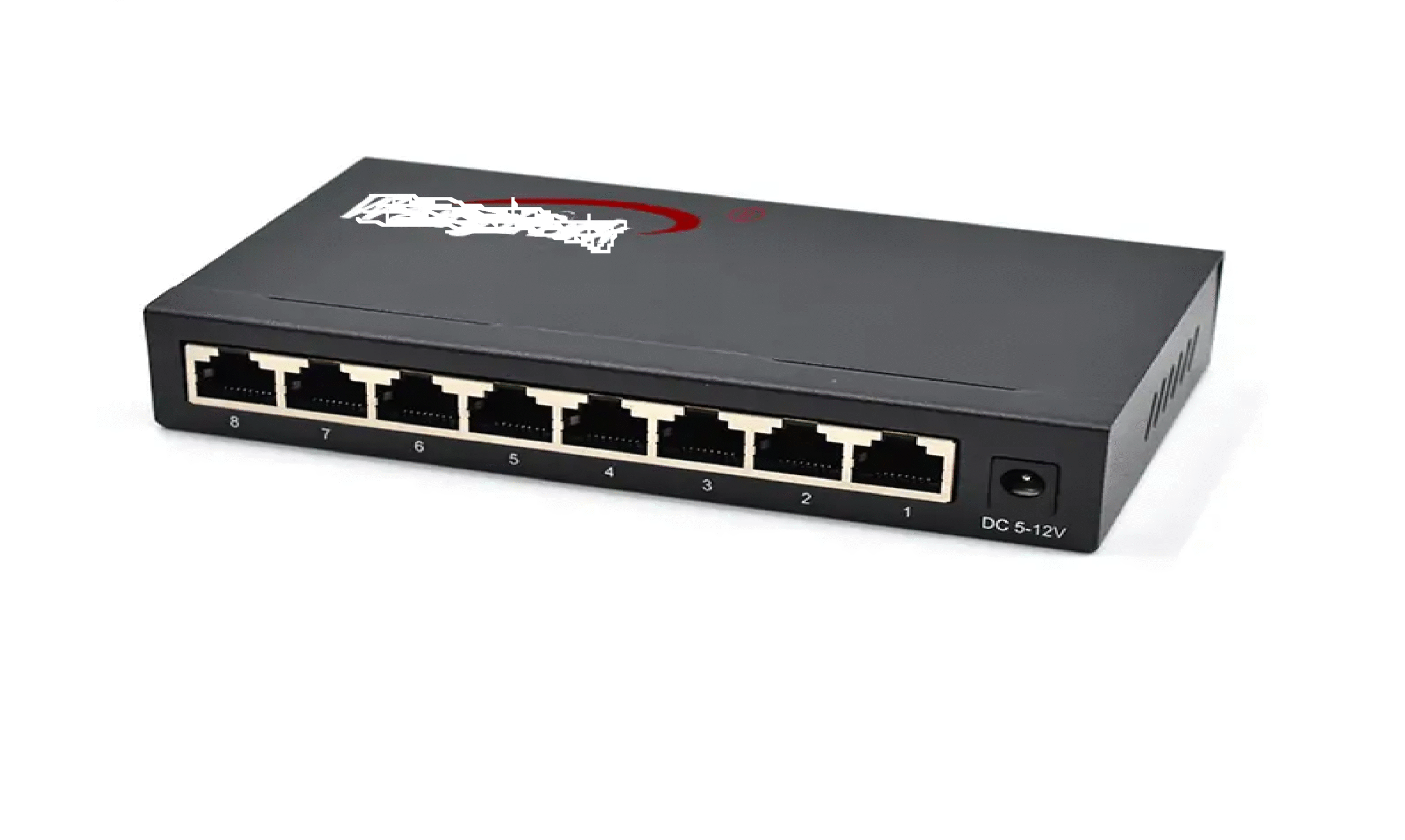

XNHT-SG08T
The XNHT-SG08T is an 8-port Gigabit Ethernet switch specifically designed for small to medium-sized network environments. It features eight adaptive 10/100/1000 Mbps RJ45 ports, all equipped with automatic crossover/parallel twisted-pair cable detection (Auto MDI/MDI-X). Each port can achieve a maximum bidirectional transmission rate of 2 Gbps. This switch is easy to install and maintain, making it an ideal choice for building efficient enterprise networks.
Compare
The XNHT-SG08T is an 8-port Gigabit Ethernet switch specifically designed for small to medium-sized network environments. It features eight adaptive 10/100/1000 Mbps RJ45 ports, all equipped with automatic crossover/parallel twisted-pair cable detection (Auto MDI/MDI-X). Each port can achieve a maximum bidirectional transmission rate of 2 Gbps. This switch is easy to install and maintain, making it an ideal choice for building efficient enterprise networks.
Key Features
- 8 10/100/1000Base-TX ports
- Supports a 4K MAC address table
- Capable of transmitting 9K Jumbo Frames
- Built-in 1.5 Mbit cache space
- All ports support 10/100/1000 Mbps speed auto-negotiation
- Supports half/full duplex auto-negotiation and automatic MDI/MDI-X functionality
- Line-speed forwarding on all ports for smoother transmission
- Compatible with desktop and wall-mount installations
- Plug-and-play operation for easy use with no configuration needed
- Constructed with a metal shell for excellent heat dissipation, ensuring stable and long-term operation
Product Parameters
| Protocol | Standard | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE 802.3x flow control |
| Ethernet port Characteristic | Connector Type | 1×8 RJ45 |
| Transmission rate | 10/100/1000Mbps auto-negotiate； | |
| Transmission distance | 10Base-T: ≤250m（CAT3,4,5 UTP）100Base-TX: ≤100m（CAT3,4,5 UTP）1000Base-T: ≤100m（CAT3,4,5 UTP） | |
| Exchange performance | Forward method | Store-and-forward（full wire-speed） |
| Transmission mode | Half/Full duplex adaptive | |
| MAC address table | 4K | |
| Case space | 1.5Mb | |
| Jumbo frame | 9216b | |
| Packet Forwarding Rate | 7.44Mpps@64byte | |
| Bandwidth | 16G（non-blocking） | |
| LED indicator | Power indicator | Green, power |
| Link/Act indicator | Yellow, per ethernet port | |
| Power parameters | Input voltage | DC 5-12V |
| Power consumption | ≤5W; | |
| Environment | Operating Temperature | -20℃～60℃ |
| Storage Temperature: | -40℃～85℃ | |
| Operating Humidity | 5%～95% non-condensing | |
| Heat dissipation method | Natural heat dissipation | |
| Physical properties | Size | 141×79×28mm |
| Weight | 280g |
