Automation, Ethernet Switch, Industrial Solution, Unmanged Switch

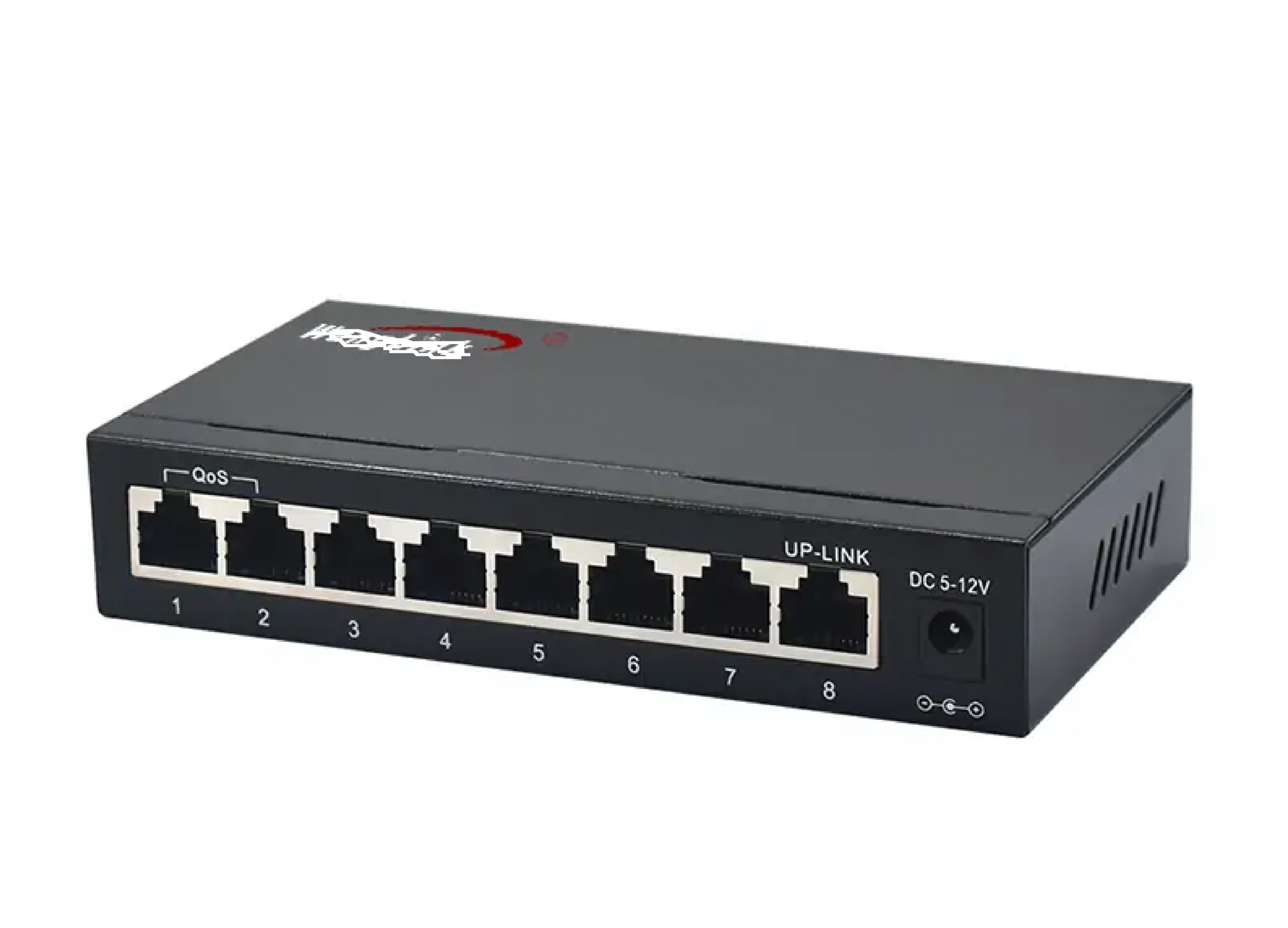

XNHT-SG08T-V2
The XNHT-SG08T-V2 is an 8-port Gigabit unmanaged Ethernet switch featuring 8 standard 10/100/1000Base-TX RJ45 ports. This device is easy to install, highly portable, and supports plug-and-play functionality without any need for configuration. All interfaces comply with international standards, ensuring compatibility and reliability.
Equipped with DIP switches, the SG08T-V2 allows users to switch between VLAN mode, QoS mode, and Extend mode. This feature facilitates port isolation, enhances data confidentiality, and ensures stable operation for easy maintenance. The QoS function effectively manages network traffic, preventing congestion, reducing packet loss, and ensuring smooth bandwidth distribution for various services. In QoS mode, network data on ports 1 and 2 are prioritized, making this switch ideal for small to medium-sized businesses, offices, hotels, and home environments.
Compare
The XNHT-SG08T-V2 is an 8-port Gigabit unmanaged Ethernet switch featuring 8 standard 10/100/1000Base-TX RJ45 ports. This device is easy to install, highly portable, and supports plug-and-play functionality without any need for configuration. All interfaces comply with international standards, ensuring compatibility and reliability.
Equipped with DIP switches, the SG08T-V2 allows users to switch between VLAN mode, QoS mode, and Extend mode. This feature facilitates port isolation, enhances data confidentiality, and ensures stable operation for easy maintenance. The QoS function effectively manages network traffic, preventing congestion, reducing packet loss, and ensuring smooth bandwidth distribution for various services. In QoS mode, network data on ports 1 and 2 are prioritized, making this switch ideal for small to medium-sized businesses, offices, hotels, and home environments.
Key Features
- Ports: 8 x 10/100/1000Base-TX RJ45
- Speed: All ports support 10/100/1000 Mbps auto-negotiation
- Duplex: All ports support half/full duplex auto-negotiation
- MDI/MDI-X: Automatic configuration on all ports for MDI/MDI-X
- Forwarding: Wire-speed forwarding on all ports for smoother transmission
- Functions: One-Key Switch for VLAN, QoS, and Extend functionalities
- Jumbo Frame: Supports 10K jumbo frame transmission
- MAC Table: Supports up to 8K MAC addresses
- Installation: Compatible with both desktop and wall-mount installations
- Ease of Use: Plug-and-play operation with no configuration needed
- Housing: Durable plastic housing with excellent heat dissipation, ensuring long-term stable operation
Product Parameters
| Standards & Protocol | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE 802.1p General Registration Protocol IEEE 802.1Q VLAN IEEE 802.3x flow control |
| Interface information | RJ45 port: 8 10/100/1000M Base-TX ports |
| Mechanical properties | Shell material: Metal Shell |
| Appearance dimensions (length*depth*height): 140mm×77mm×27mm | |
| Installation method: Desktop, Wall-mount | |
| Heat dissipation method: natural cooling, no fan | |
| G.W: < 258g | |
| Environmental properties | Working temperature: -20℃～+60℃ |
| Storage temperature: -20℃～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth: 16Gbps |
| Packet forwarding rate (whole machine) : 11.904Mpps | |
| Exchange method: store-and-forward | |
| MAC table : 8K | |
| Packet buffer : 4M | |
| Jumbo frame: 10k | |
| Power supply | Input voltage: 5-12V |
| Power consumption: < 3W | |
| Indicator | Ethernet port (fluctuation switch control):· Power LED: Green· Port Status LEDs: 10/100/1000M Link/ACT Green· E Switch: (Ports 1-7 forced to 10M for long-distance communication)· Q Switch: (Ports 1-2 data prioritized, passing through port 8 UP-LINK)· V Switch: (Ports 1-7 isolated, each can communicate with port 8 UP-LINK) |
