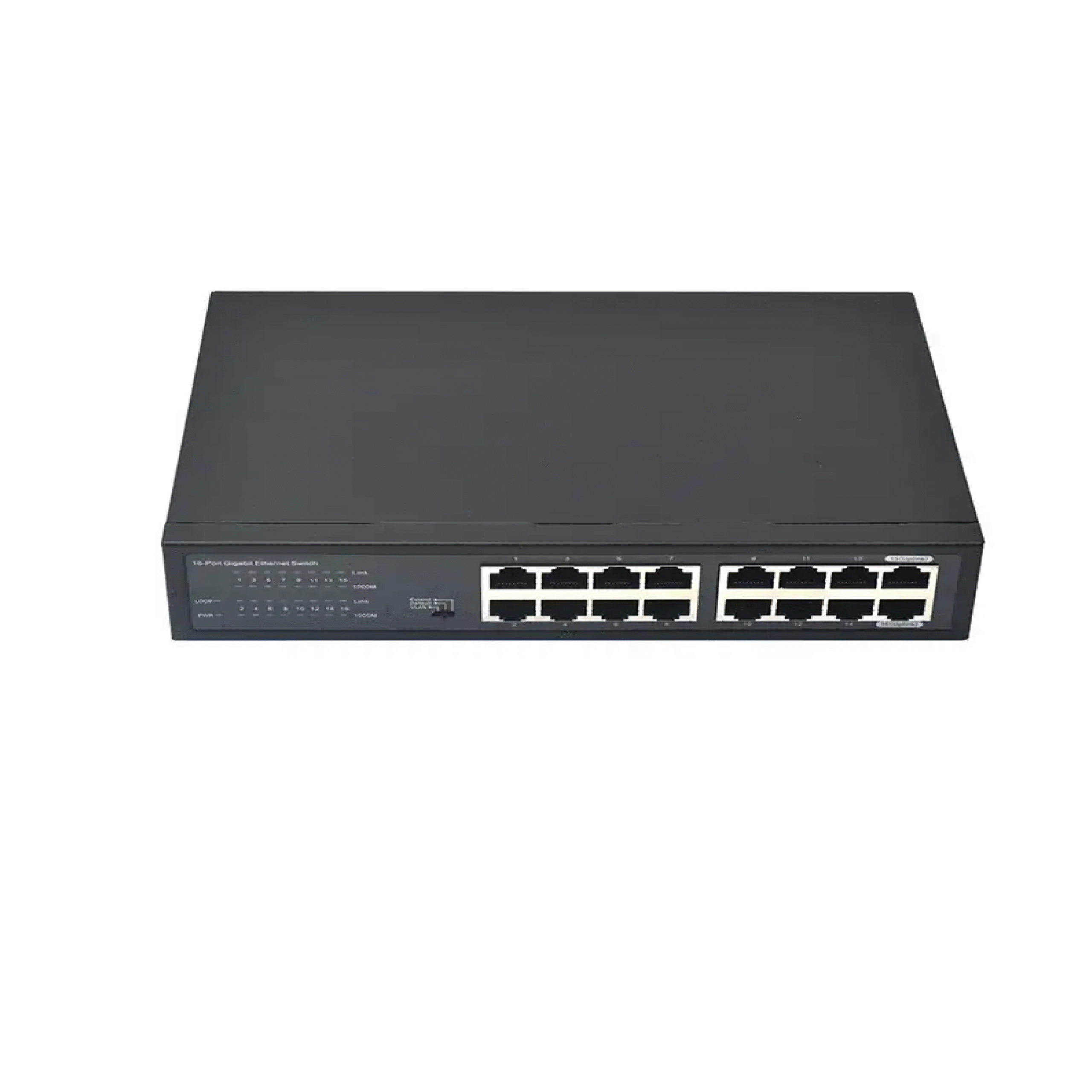

XNHT-SG16
The XNHT-SG16 is a 16-port Gigabit Ethernet switch equipped with high-quality, high-speed network ICs. Designed with a fanless and silent operation, this switch completely alleviates the noise issues commonly associated with deploying small switches in office environments. With 16 10/100/1000M RJ45 ports, it provides seamless connectivity for 10/100/1000M Ethernet.
This switch supports three working modes and allows for intelligent switching between modes with a single click using the DIP switch. It is easy to manage and maintain, making it ideal for various applications such as security network video surveillance, hotels, campuses, and small to medium-sized enterprise networks.
Compare
The XNHT-SG16 is a 16-port Gigabit Ethernet switch equipped with high-quality, high-speed network ICs. Designed with a fanless and silent operation, this switch completely alleviates the noise issues commonly associated with deploying small switches in office environments. With 16 10/100/1000M RJ45 ports, it provides seamless connectivity for 10/100/1000M Ethernet.
This switch supports three working modes and allows for intelligent switching between modes with a single click using the DIP switch. It is easy to manage and maintain, making it ideal for various applications such as security network video surveillance, hotels, campuses, and small to medium-sized enterprise networks.
Key Features
- 16 10/100/1000Base-TX Ethernet RJ45 ports
- Supports 9K jumbo frames
- Equipped with an 8K MAC address table
- All ports support 10/100/1000 Mbps rate adaptation
- Automatic half/full duplex adaptation and MDI/MDI-X functionality on all ports
- Line-speed forwarding on all ports for smoother transmission
- Supports both desktop and wall-mounted installations
- Panel indicators to monitor working status and assist in fault analysis
- Three-position one-touch intelligent DIP switch, supporting VLAN, Default, and Extend modes
- Plug-and-play operation, simple to use with no configuration required
- Constructed with a metal shell for excellent heat dissipation, ensuring long-term stability
Product Parameters
| Standards & Protocol | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE 802.1p tagged frames IEEE 802.3x flow control |
| Interface information | RJ45 port: 16 10/100/1000M Base-T ports (standard RJ45) |
| 10/100/1000Mbps adaptive | |
| 10Base-T: ≤250m (CAT3,4,5 UTP) | |
| 100Base-TX: ≤100m (CAT3,4,5 UTP) | |
| 1000Base-T: ≤100m（CAT3,4,5 UTP） | |
| Mechanical properties | Shell material: metal shell |
| Appearance dimensions (length*depth*height): 220mm×162mm×44mm | |
| Installation method: Desktop, Rack-mount | |
| Heat dissipation method: natural cooling, no fan | |
| Weight: <1.0KG | |
| Environmental properties | Working temperature: -20℃～+60℃ |
| Storage temperature: -20℃～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth:32Gbps |
| Packet forwarding rate (whole machine) : 23.808Mpps | |
| Exchange method: store-and-forward | |
| MAC table : 8K | |
| Case space : 4m | |
| Jumbo frame: 4K | |
| Power supply | Input voltage: AC100V-240V |
| Power consumption: < 5 W | |
| Indicator light | Port light (fluctuation switch control):Network port light: 100M green;LOOP (loop alarm): green (flashing);Link/Act (link & data): green (flashing);VLAN mode: Port isolation, ports 1-14 are isolated from each other, and all communicate with ports 15 and 16;Default mode: Default mode, supports loop alarm;Extend mode: Monitoring mode, ports 1-14 support 100M speed reduction negotiation, 10M mode supports 250 meters, ports 15-16 serve as aggregation. |
| POWER(Power system indicator light): Green |
