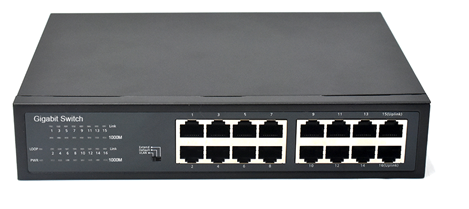

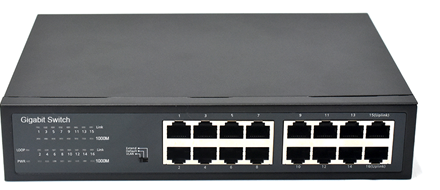

XNHT-SG16- Metal
This is a 16-port gigabit intelligent Ethernet switch using high-quality and high-speed network IC. This product uses a fanless and silent design, which completely solves the problem of high noise when small switches are deployed in office environments. This switch has 16 10/100/1000M RJ45 ports, which can provide seamless connection for 10/100/1000M Ethernet.
It supports 3 working modes and can intelligently switch between different working modes with one click through the DIP switch. It is easy to manage and maintain and is widely used in security network video surveillance, hotels, campuses, small and medium-sized enterprise network engineering and other occasions
₹4,587.00 ₹5,963.00
This is a 16-port gigabit intelligent Ethernet switch using high-quality and high-speed network IC. This product uses a fanless and silent design, which completely solves the problem of high noise when small switches are deployed in office environments. This switch has 16 10/100/1000M RJ45 ports, which can provide seamless connection for 10/100/1000M Ethernet.
It supports 3 working modes and can intelligently switch between different working modes with one click through the DIP switch. It is easy to manage and maintain and is widely used in security network video surveillance, hotels, campuses, small and medium-sized enterprise network engineering and other occasions 16-port gigabit intelligent Ethernet switch using high-quality and high-speed network IC. This product uses a fanless and silent design, which completely solves the problem of high noise when small switches are deployed in office environments. This switch has 16 10/100/1000M RJ45 ports, which can provide seamless connection for 10/100/1000M Ethernet.
It supports 3 working modes and can intelligently switch between different working modes with one click through the DIP switch. It is easy to manage and maintain and is widely used in security network video surveillance, hotels, campuses, small and medium-sized enterprise network engineering and other occasions
| Standards & Protocol | IEEE802.3 10Base-T
IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE 802.1p tagged frames IEEE 802.3x flow control |
| Interface information | RJ45 port: 16 10/100/1000M Base-T ports (standard RJ45) |
| 10/100/1000Mbps adaptive | |
| 10Base-T: ≤250m (CAT3,4,5 UTP) | |
| 100Base-TX: ≤100m (CAT3,4,5 UTP) | |
| 1000Base-T: ≤100m（CAT3,4,5 UTP） | |
| Mechanical properties | Shell material: metal shell |

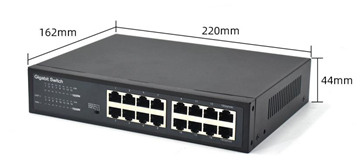

| Appearance dimensions
(length*depth*height): 220mm×162mm×44mm |
|
| Installation method: Desktop, Rack-mount | |
| Heat dissipation method: natural cooling, no fan | |
| Weight: <1.0KG | |
| Environmental properties | Working temperature: -20℃～+60℃ |
| Storage temperature: -20℃～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth:32Gbps |
| Packet forwarding rate (whole machine) : 23.808Mpps | |
| Exchange method: store-and-forward | |
| MAC table : 8K | |
| Case space : 4m | |
| Jumbo frame: 4K | |
| Power supply | Input voltage: AC100V-240V |
| Power consumption: < 5 W | |
| Indicator light | Port light (fluctuation switch control):
Ø Network port light: 100M green; Ø LOOP (loop alarm): green (flashing); Ø Link/Act (link & data): green (flashing); Ø VLAN mode: Port isolation, ports 1-14 are isolated from each other, and all communicate with ports 15 and 16; Ø Default mode: Default mode, supports loop alarm; Ø Extend mode: Monitoring mode, ports 1-14 support 100M speed reduction negotiation, 10M mode supports 250 meters, ports 15-16 serve as aggregation. |
| POWER(Power system indicator light): Green |
