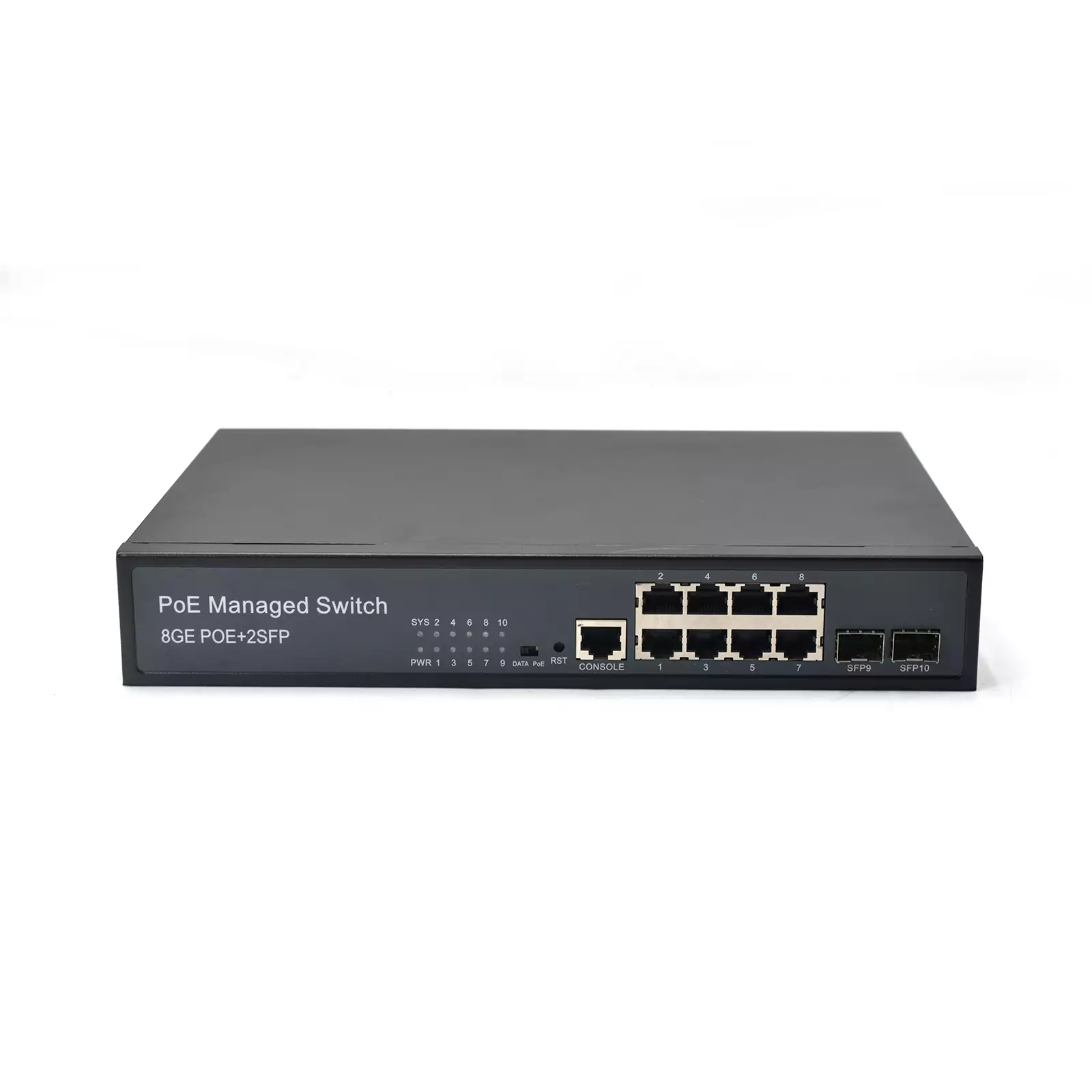

XNHT-SG802M
The XNHT-SG802M Layer 2 Ethernet Switch is a Gigabit managed switch developed independently by our company. It features 8 fixed 10/100/1000Base-T adaptive network ports, 2 1000M SFP optical ports, and 1 CONSOLE port. This switch is designed to provide a robust network solution with a focus on ease of management and security.
With a visual WEB management interface, the SG802M supports both IPv4 and IPv6 management, along with comprehensive security protection mechanisms, advanced ACL and QoS strategies, and versatile VLAN functionalities. It’s easy to manage and maintain and supports multiple network redundancy protocols, including STP, RSTP, MSTP, and industrial ERPS ring functions, ensuring network stability. Users can manage ports, configure flow control, set up VLANs, enable IGMP, and implement security strategies through various management methods, including Web, CLI, SNMP, and Telnet.
This switch is an ideal choice for hotels, campuses, parks, supermarkets, scenic spots, factory dormitories, and small to medium-sized businesses (SMBs) looking to establish efficient and cost-effective networks.
Compare
The XNHT-SG802M Layer 2 Ethernet Switch is a Gigabit managed switch developed independently by our company. It features 8 fixed 10/100/1000Base-T adaptive network ports, 2 1000M SFP optical ports, and 1 CONSOLE port. This switch is designed to provide a robust network solution with a focus on ease of management and security.
With a visual WEB management interface, the SG802M supports both IPv4 and IPv6 management, along with comprehensive security protection mechanisms, advanced ACL and QoS strategies, and versatile VLAN functionalities. It’s easy to manage and maintain and supports multiple network redundancy protocols, including STP, RSTP, MSTP, and industrial ERPS ring functions, ensuring network stability. Users can manage ports, configure flow control, set up VLANs, enable IGMP, and implement security strategies through various management methods, including Web, CLI, SNMP, and Telnet.
This switch is an ideal choice for hotels, campuses, parks, supermarkets, scenic spots, factory dormitories, and small to medium-sized businesses (SMBs) looking to establish efficient and cost-effective networks.
Key Features
- 8 x 10/100/1000Base-T ports and 2 x 1000Base-X SFP fiber ports for flexible and high-speed connectivity.
- 4.1M port buffer to prevent congestion, ensuring smooth video storage and transmission.
- Data control features supporting 802.3X full-duplex flow control and network storm suppression to maintain performance.
- Redundant networking capabilities, including support for STP/RSTP/MSTP and industrial ERPS ring network functions to enhance network reliability.
- Multicast management: Supports IGMP Snooping (V1/V2/V3) for effective multicast traffic management.
- VLAN support: Implements IEEE 802.1Q VLAN functionalities to effectively isolate broadcast domains, enhancing security and performance.
- Quality of Service (QoS): Supports COS/DSCP, 4 queues, and both WRR and SP scheduling modes to prioritize critical applications.
- Security management: Features ACLs, 802.1X, and user hierarchy management to ensure authorized access and data protection.
- Management features: Comprehensive management options including CLI, WEB, and SNMP for easy configuration and monitoring.
- Monitoring and maintenance: Supports port mirroring, interface status monitoring, and log management for proactive system maintenance.
- Constructed with a robust metal casing and built-in power design for excellent heat dissipation, ensuring long-term stable operation.
Product Parameters
| Standards & Protocol | 10Base-T, compliant with IEEE 802.3 100Base-TX, compliant with IEEE 802.3u 1000Base-T, compliant with IEEE 802.3ab 1000Base-X, compliant with IEEE 802.3z Flow control, following IEEE 802.3x Environmentally friendly, compliant with IEEE 802.3az |
| Interface information | SFP Fiber Ports: 2 1000Base-X ports (compatible with 100M) |
| Transmission Rate: 1.25G | |
| Multimode: 550m/2km; Single mode: 2/20/40/60/80/100km | |
| Multimode: 850nm/1310nm, Single mode: 1310nm/1550nm/1490nm | |
| RJ45 Ports: 8 10/100/1000M Base-T ports (standard RJ45) | |
| 10/100/1000Mbps adaptive | |
| 10Base-T: ≤100m (CAT3,4,5 UTP) | |
| 100Base-TX: ≤100m (CAT3,4,5 UTP) | |
| Reset interface | Reset button(5-10s) |
| Fluctuation switch | 1 indicator light fluctuation switch (2nd gear: DATA, POE) |
| Mechanical properties | Shell material: metal shell |
| Appearance dimensions (length*depth*height): 270mm×180mm×44mm | |
| Installation method: desktop installation; Wall-mount installation | |
| Heat dissipation method: natural cooling, no fan | |
| Weight: <1.5KG | |
| Environmental properties | Working temperature: -20℃～+60℃ |
| Storage temperature: -10℃～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth: 20Gbps |
| Packet forwarding rate (whole machine) : 15Mpps | |
| Exchange method: store-and-forward | |
| MAC table : 8K | |
| Port Buffer : 4.1m | |
| Power supply | Input voltage: AC 100~240V |
| Power consumption: < 10W | |
| Indicator light | Port light: When Switch Point to Data : 10/100M Link/ACT yellow, 1000M Link/ACT green;When Switch Point to PoE: PoE yellow |
| POWER: Green | |
| System: Green | |
| Warranty | 1 years |
Software features
| Monitoring function | Information such as device model, serial number, MAC, hardware version, software version, system time, running time, CPU utilization, memory utilization, etc. can be viewed |
| Support port statistics | |
| VLAN function | Support management VLAN |
| Support management IP configuration | |
| Support port VLAN | |
| Supports VLANs for IP subnets | |
| Support MAC VLAN | |
| Support Voice VLAN | |
| Support GVRP | |
| Port function | Support port configuration |
| Support port aggregation | |
| Support port mirroring | |
| Support port speed limit | |
| Support port isolation | |
| Support port energy saving | |
| Scene function | Support MAC configuration (static binding and dynamic binding) |
| Support DHCP Snooping | |
| Support IGMP-Snooping, MLD Snooping | |
| Support LLDP configuration | |
| Support QOS configuration | |
| Support Jumbo Frame | |
| security function | Support ARP configuration |
| Support storm control | |
| Support ACL (based on IP, MAC, time) | |
| Support attack prevention (DOS, Icmp-echo) | |
| Support DHCP Snooping | |
| Support 802.1X | |
| Support Radius authentication | |
| Ring network function | Support STP |
| Support RSTP | |
| Support MSTP | |
| Support ERPS | |
| Troubleshooting function | Support loop protection |
| Support log management | |
| Support Ping detection | |
| Support traceroute | |
| Support line detection | |
| Device management function | Support HTTP/HTTPS |
| Support TELNET | |
| Support SNMP | |
| Support RMON | |
| Equipment maintenance function | Support system time (local and NTP) |
| Support account management (hierarchical management of accounts and password protection) | |
| Support configuration management (configuration import, export, restore factory settings) | |
| Support system upgrade | |
| Support device restart |
