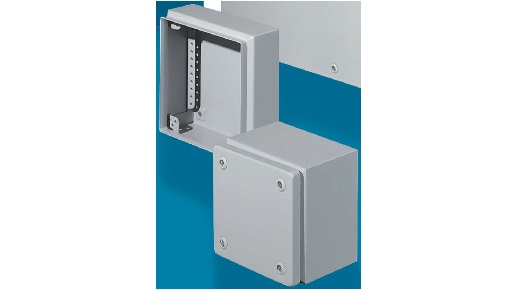

XNKL Connection Box Series
XNKL Connection Box Series - Image 2
, ,

XNKL Connection Box Series

Compare

XNKL Connection Box Series

Material : Cold rollled steel sheet
Surface Treatment : Phosphating Coated for Box body and door plate, power coating for outside, color is RAL7035 orange peel texture, galvanized mounting plate.
Protection Grade : IP56 (acc. to GB/T 4208-2017)
Standard Configuration : Door Plate, box body, Sealing Strip, cover screw, mounting plate (option)
Plate Thickness : Box Body : 1.2-1.5mm Door Plate : 1.5mm Mounting Plate : 2.5mm

ASK FOR PRICE

Compare
Add to quote

XNKL Connection Box Series

– The door plate and box body are installed with special screws and retainers in accordance with general standard, which can ensure the Protection grade.
– The multilayer protection slot can prevent dirt and water from entering the box when door is opened.
– PU foam sealing strip ensures IP56 protection grade of the box
– The grounding belt can connect box body and door plate
– guide rail and mounting plate can be installed on supporting strip with screw holes , the mounting height is maximum
– The special plastic insulating sleeve can provide good sealing and prevent door plate screw from loosing and guide screws when they are tightened
