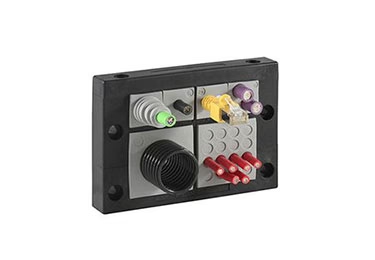

XNL 16-E Cable Entry Frame
Delivery Time : 3-4 Weeks
XNL16-E Cable Entry Frame
Material : PA 66 Halogen Free
Colour : Black
Temperature : -40° C to 140° C (Static)
IP Rating : IP54 / IP65
Flame Class : UL94: V0
Cut-Out Size : 66*86mm
Frame Height : 17mm
₹10,000.00 ₹12,500.00
XNL 16-E Cable Entry Frame
Part No. : XNL16/12-E – XN Small
Part No. : XNL16/6-E – XN Small & Medium
XNL 16-E Cable Entry Frame
Part No. : XNL16/12-E – XN Small
Mounting options : Screw type mounting, Snap-in with XNL-SNAP
For max. no. of cables : 48
Max. cable diameter : 17 mm
Length : 120 mm
Width : 84 mm
Height : 17 mm
Mounting height : 17 mm
Cut-out size : 86 × 66 mm
No. of screw holes : 4
Diam. of screw holes : 5.8 mm
Screw material : Mild steel, galvanically zinc plated
Min. cable diam., with connector
Suitable for grommets : 12 x XN small
Part No. : XNL16/6-E – XN Small & Medium
Mounting options : Screw type mounting, Snap-in with KEL-SNAP
For max. no. of cables : 18
Max. cable diameter : 35 mm
Length : 120 mm
Width : 84 mm
Height : 17 mm
Mounting height : 17 mm
Cut-out size : 86 × 66 mm
No. of screw holes : 4
Diam. of screw holes : 5.8 mm
Screw material : Mild steel, galvanically zinc plated
Min. cable diam., with connector
Suitable for grommets : 4 x XN small, 2 x XN large
Data Sheet
Test / Quality Data
Drawing
