Cable Entry System, Electrical, Industrial Solution

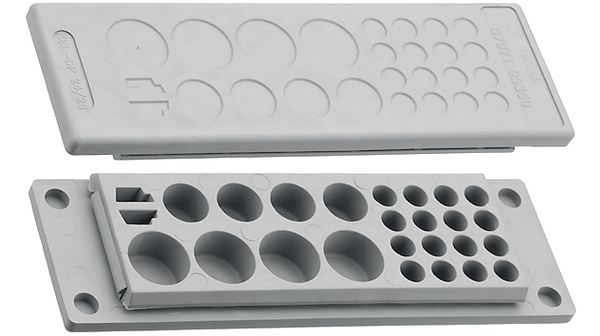

XNL 24 Cable Entry Frame Set
Delivery Time : 3-4 Weeks
XNL 24 Cable Entry Frame Set
Material : PA 66 Halogen free
Colour : Black
Temperature : -40° C to 140° C (Static)
IP Rating : IP54 / IP65
Flame Class : UL94: V0
Cut-Out-Size : 36*112mm
₹3,000.00 ₹4,500.00
XNL- 24 cable Entry Frame Set
Part No. : XNL 24/10 Set
Part No. : XNL24/7 Set
Part No. : XNL24/4 Set
XNL- 24 cable Entry Frame Set
Part No. : XNL 24/10 Set
| Mounting options | Screw type mounting, Snap-in with XNL-SNAP |
| For max. no. of cables | 40 |
| Max. cable diameter | 17 mm |
| Length | 147 mm |
| Width | 58 mm |
| Height | 17 mm |
| Mounting height | 17 mm |
| Cut-out size | 112 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.8 mm |
| Screw material | Mild steel, galvanically zinc plated |
| Min. cable diam., with connector | |
| Suitable for grommets | 10 x XN small |
Part No. : XNL24/7 Set
| Mounting options | Screw type mounting, Snap-in with XNL-SNAP |
| For max. no. of cables | 25 |
| Max. cable diameter | 35 mm |
| Length | 147 mm |
| Width | 58 mm |
| Height | 17 mm |
| Mounting height | 17 mm |
| Cut-out size | 112 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.8 mm |
| Screw material | Mild steel, galvanically zinc plated |
| Min. cable diam., with connector | |
| Suitable for grommets | 6 x XN small, 1 x XN large |
Part No. : XNL24/4 Set
| Mounting options | Screw type mounting, Snap-in with XNL-SNAP |
| For max. no. of cables | 10 |
| Max. cable diameter | 35 mm |
| Length | 147 mm |
| Width | 58 mm |
| Height | 17 mm |
| Mounting height | 17 mm |
| Cut-out size | 112 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.8 mm |
| Screw material | Mild steel, galvanically zinc plated |
| Min. cable diam., with connector | |
| Suitable for grommets | 2 x XN small, 2 x XN large |
Data Sheet
Test / Quality Data
Drawing
