Ai Edge Gateway
1 in stock
XN-RK3588-F25 ( NO WI-FI )
CPU : RK3588
Memory : 8 GB
Storage : 64 GB
Ethernet : Dual-Gigabit Ethernet
Power Input : DC 12V – 2 A
₹37,000.00 ₹39,000.00
1 in stock
Compare| Category | Parameter | Details |
| System | SOC | 4× Cortex-A76 + 4× Cortex-A55 |
| CPU | RK3588 | |
| NPU | 6 TOPS (Supports built-in 13~26 TOPS AI accelerator stick) | |
| Memory | 8GB / 16GB | |
| Storage/Extension | eMMC 64GB / 128GB; 2× SSD (M.2 2280 SATA/NVMe) | |
| GPU | Mali-G610 | |
| Video | Hardware | JPEG Encoder/Decoder; 8K Video Encoder (H.265/H.264); 8K 10-bit Video Decoder (H.265/H.264/VP9/AV1) |

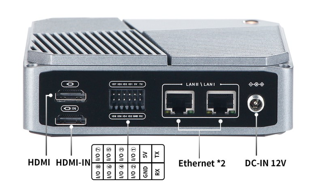

| Display Interfaces | 1× HDMI 2.1, 1× HDMI In | |
| Resolution | Up to 8K @ 60Hz; Supports video input | |
| Network | Ethernet | Dual Gigabit Ethernet |
| Wireless Networks | Not Available | |
| I/O | USB | 2× USB 3.0 |
| GPIO | 8-pin GPIO | |
| Audio | Audio Combo (Out + In) | |
| Type-C | 1× Universal Type-C | |
| Others | Watchdog | Supports customization |
| RTC | Supported | |
| Power Supply | Power Input | DC 12V – 2A |
| Indicators | Red / Green LED | |
| Physical Parameters | Enclosure Dimension | 129 × 113 × 39 mm |
| Package Dimension | 244 × 187 × 62 mm | |
| Net Weight | 0.47 kg | |
| Gross Weight | 0.95 kg | |
| Software | Operating System | Ubuntu 22.04 |
| Environment | Working Temperature | -30°C to 60°C |
| Storage Temperature | 0°C to 40°C | |
| Humidity | 0–85% RH (No Condensation) | |
| Certifications | CE |
Data Sheet
⚫ 8nm advanced manufacturing process,8-core 64-bit
architecture,delivering high performance and low power
consumption.
⚫ Equipped with ARM Mali-G610 MC4 GPU and a
dedicated 2D graphics acceleration module.
RK3588
Ai Edge Gateway
⚫ 6TOPS NPU,empowering various AI scenarios.
⚫ Supports 8K video encoding and decoding, and
supports video input.
⚫ Supports hardware decoding of up to 8 streams
of 1080P@30Hz video feeds
⚫ Equipped with built-in multi-channel I/O interfaces
and supports custom compilation.
⚫Boasts a powerful image processing ability with a 48MP
ISP.
⚫ Comes with a wealth of high-speed interfaces (PCle
Gigabit Ethernet),facilitating easy expansion.
⚫ Supports Ubuntu 22.04 operating systems.
