-23%

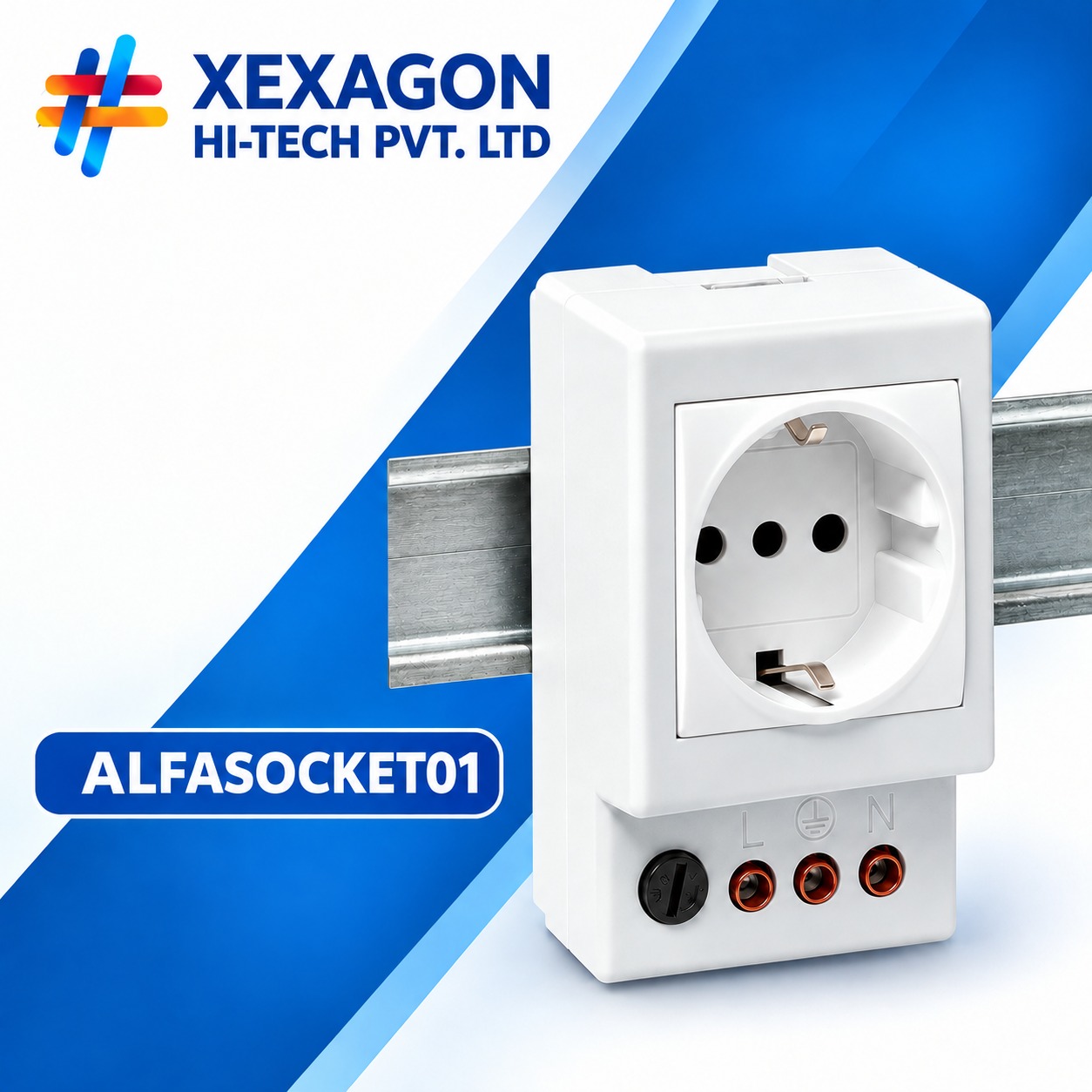

Din rail socket, Electrical, Socket
ALFASCOCKET01
Delivery Time: 3-4 Week
Part No: ALFASCOCKET01
Socket 10A and Schuko 16A
₹1,199.00 ₹1,559.00
ALFASCOCKET01
Socket 10A and Schuko 16A
| FEATURES | Unit | ALFASOCKET01 | ALFASOCKET02 | ALFASOCKET03 | ALFASOCKET04 | |||
| Standard | – | Germany | Italy | France | Euro-American | |||
| Voltage | V | 250 | 250 | 250 | 125 | |||
| Max. current | A | 16 | 16 | 16 | 16 | |||
| Electrical connection | – | 3-pole terminal for 2.5 mm² wire | ||||||
| Casing | – | ABS, UL94 V0 self-estinguishing, light grey RAL 7035 | ||||||
| Protection Class | – | Class I | ||||||
| Protection degree EN60529 | – | IP20 | ||||||
| Operating temperature | °C (°F) | -25 / +60 (-13 / +140) | ||||||
| Storage temperature | °C (°F) | -45 / +60 (-49 / +140) | ||||||
| Mounting | – | Clip for mounting on DIN rail 35mm EN50022 | ||||||
| Dimensions HxWxD | mm | 92x58x51 | ||||||
| Weight | kg | 0.11 | ||||||
| Conformity/Certifications | – | CE | ||||||
| Versions | ||||||||
| With fuse 6.3A | ALFASOCKET01F | ALFASOCKET02F | ALFASOCKET03F | ALFASOCKET04F | ||||
| Accessories | ||||||||
| DIN rail bracket | GUIDADINPL | |||||||
Data Sheet
Test / Quality Data
Drawing
