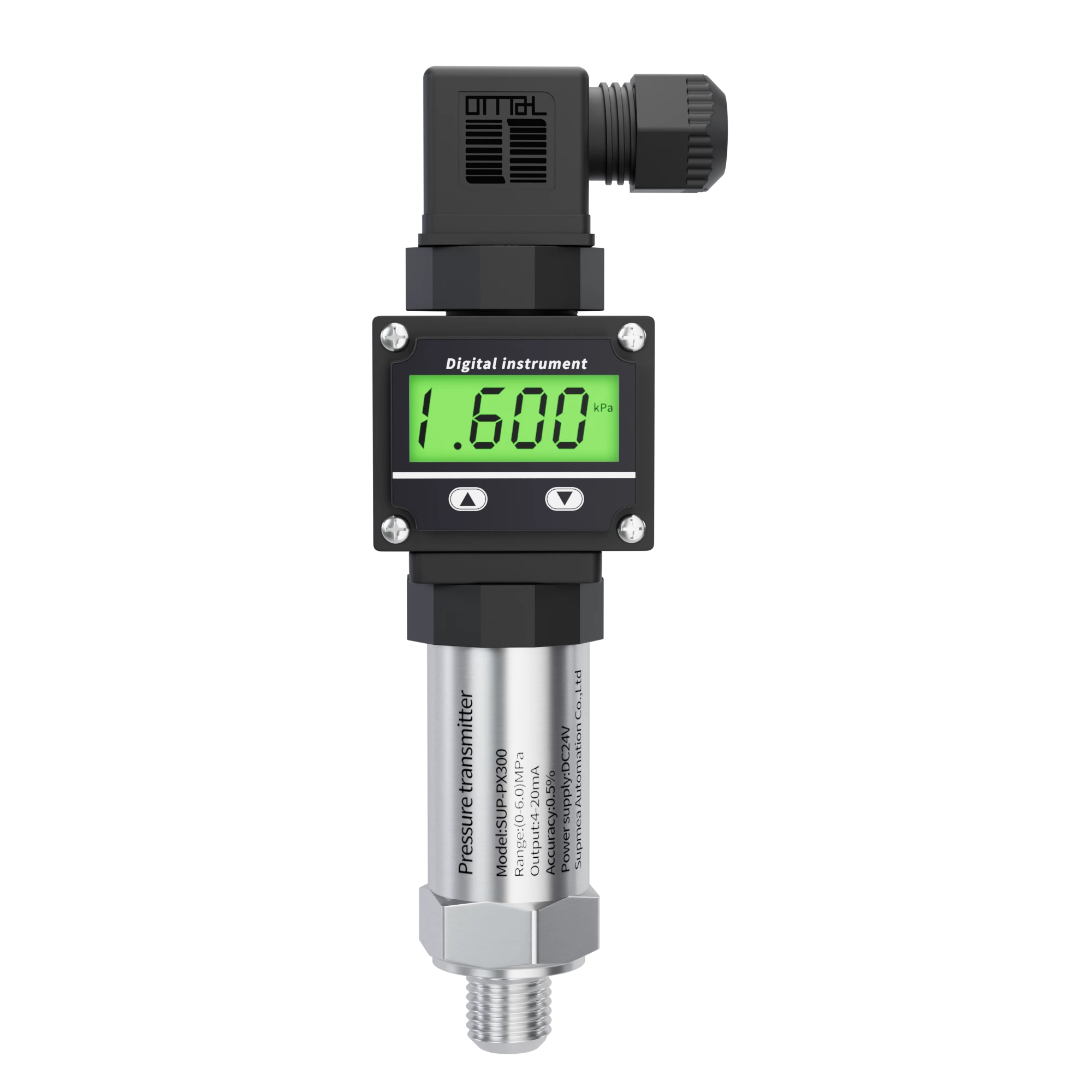

Pressure Sensor With Display

XNHPT200-G

Parameter : HPT200-G

Pressure Range : Gage / Absolute / Negative pressure optional

Overload : 200% F. S.

Burst Pressure : 500% F. S.

Accuracy : ≤ ± 0.5 % F. S. ≤ ± 0.2 %F. S. ≤ ± 0.1 %F. S. (By Customize)

(Linearity Hysteresis Repeatability) : Including non-lin, rep. and hys. optional

Long Stability : 0.1% F.S. / Year

Working Temp. : -40℃~85℃/150℃ optional

Compensation Temp : 0℃….50℃(P≤35KPa) or -10℃…70℃(P>35KPa)

Storage Temp : -40℃~105℃

Medium Compatible : Compatible with 316L stainless steel

Electronic Wire : 2 Wire , 3 Wire

Output : 4~20mA , 0~5V,1~5V

Power Supply : 12~30Vdc , 12~30Vdc

Insulate Resistance : >100M Ω @100V

Zero Temp. Drift : 0.02%FS/℃（≤35kPa）, 0.01%FS/℃（>35kPa）

FS Temp. Drift : 0.03%FS/℃（≤35kPa）, 0.02%FS/℃（>35kPa）

Local Display : 4 -1/2 bits LED/LCD local display

LED Indicator Specification : Dimension: 43*38*17.5 mm; Non-linear: ±0.02%F.S.; Display scope: -9999 to +9999 Sampling rate 10 times / sec.; Working temp range: -30 to +80℃ Overload display ‘ERR’; Backlight suitable for dark environment application.

Electronic Connection : DIN Hirschmann Terminal Box 4 Pins and IP65.

Mechanical Vibration : ±20g

Pressure Connect Part : 1/4″NPT male 1/2″NPT Female G1/2″; G1/4″male optional. (By Customized)

IP Rating : IP65

Response Time : ≤10ms
