Cable Entry System, Electrical, Industrial Solution

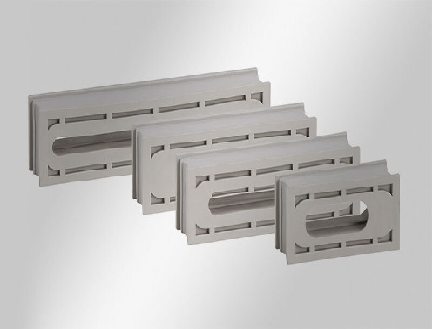

XN-F Cable Grommet (Flat Cables)
XN-F Cable Grommet (flat cables)
Material : TPE Halogen free
Temperature : -40° C to 100° C (Static)
IP Rating : IP54 / IP65
Flame Class : UL94: V0 – Self-Extinguishing
₹3,000.00 ₹4,500.00
XN-F Cable Grommet (Flat Cables)
Part No. : XN-F1
Part No. : XN-F1-1/0
| Colour | grey (similar RAL 7035) |
| Length | 42 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| Min. flat cable width | 0 mm |
| Max. flat cable width | 0 mm |
| Min. flat cable thickness | 0 mm |
| Max. flat cable thickness | 0 mm |
Part No. : XN-F1-1/A
| For max. no. of cables | 1 |
| Colour | grey (similar RAL 7035) |
| Length | 42 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Flat cable |
| Min. flat cable width | 19 mm |
| Max. flat cable width | 23 mm |
| Min. flat cable thickness | 5.5 mm |
| Max. flat cable thickness | 6 mm |
Part No. : XN-F1-1/B
| For max. no. of cables | 1 |
| Colour | grey (similar RAL 7035) |
| Length | 42 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Flat cable |
| Min. flat cable width | 28 mm |
| Max. flat cable width | 33 mm |
| Min. flat cable thickness | 5.5 mm |
| Max. flat cable thickness | 6 mm |
Part No. : XN-F1-1/C
| For max. no. of cables | 1 |
| Colour | grey (similar RAL 7035) |
| Length | 42 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Flat cable |
| Min. flat cable width | 24 mm |
| Max. flat cable width | 30 mm |
| Min. flat cable thickness | 8.5 mm |
| Max. flat cable thickness | 9 mm |
Part No. : XN-F1-1/F
| For max. no. of cables | 1 |
| Colour | grey (similar RAL 7035) |
| Length | 42 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Flat cable |
| Min. flat cable width | 28 mm |
| Max. flat cable width | 33 mm |
| Min. flat cable thickness | 9 mm |
| Max. flat cable thickness | 9.5 mm |
Part No. : XN-F1-2/0
| Colour | grey (similar RAL 7035) |
| Length | 65 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| Min. flat cable width | |
| Max. flat cable width | |
| Min. flat cable thickness | |
| Max. flat cable thickness |
Part No. : XN-F1-2/A
| For max. no. of cables | 1 |
| Colour | grey (similar RAL 7035) |
| Length | 65 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Flat cable |
| Min. flat cable width | 32.5 mm |
| Max. flat cable width | 38 mm |
| Min. flat cable thickness | 5 mm |
| Max. flat cable thickness | 5.5 mm |
Part No. : XN-F1-2/B
| For max. no. of cables | 1 |
| Colour | grey (similar RAL 7035) |
| Length | 65 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Flat cable |
| Min. flat cable width | 45 mm |
| Max. flat cable width | 50.5 mm |
| Min. flat cable thickness | 6 mm |
| Max. flat cable thickness | 6.5 mm |
Part No. : XN-F1-2/C
| For max. no. of cables | 1 |
| Colour | grey (similar RAL 7035) |
| Length | 65 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Flat cable |
| Min. flat cable width | 47 mm |
| Max. flat cable width | 52 mm |
| Min. flat cable thickness | 9.5 mm |
| Max. flat cable thickness | 10 mm |
Part No. : XN-F1-3/0
| Colour | grey (similar RAL 7035) |
| Length | 87 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| Min. flat cable width | 0 mm |
| Max. flat cable width | 0 mm |
| Min. flat cable thickness | 0 mm |
| Max. flat cable thickness | 0 mm |
Part No. : XN-F1-3/A
| For max. no. of cables | 1 |
| Colour | grey (similar RAL 7035) |
| Length | 87 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Flat cable |
| Min. flat cable width | 72 mm |
| Max. flat cable width | 77 mm |
| Min. flat cable thickness | 5 mm |
| Max. flat cable thickness | 5.5 mm |
Part No. : XN-F1-4/A
| For max. no. of cables | 1 |
| Colour | grey (similar RAL 7035) |
| Length | 114 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Flat cable |
| Min. flat cable width | 85 mm |
| Max. flat cable width | 99 mm |
| Min. flat cable thickness | 4.2 mm |
| Max. flat cable thickness | 5.2 mm |
Part No. : XN-F1-4/0
| Colour | grey (similar RAL 7035) |
| Length | 114 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| Min. flat cable width | 0 mm |
| Max. flat cable width | 0 mm |
| Min. flat cable thickness | 0 mm |
| Max. flat cable thickness | 0 mm |
