XN-F23 Industrial Mini Pc
XN-F23-1245OH
CPU : Intel® Core I5-12450H 2.00 GHz-4.40GHz
RAM : 8 GB
SSD : 512 GB
Network : 10/100/1000BASE-T Ethernet (RJ45) x 1, Realtek 8111H
OS : Windows 10, Windows 11, Linux
₹48,800.00 ₹50,000.00
| Parameter | Specification |
| CPU | Intel® Core i5-12450H (2.00 GHz – 4.40 GHz) |
| Cores/Threads | 8 Cores / 12 Threads |
| Cache | 12 MB Intel Smart Cache |
| TDP | 45W |
| Architecture | Alder Lake |
| Memory | 2 × SO-DIMM DDR5 slots, up to 64GB |
| Storage | M.2 2280 SATA/NVMe SSD, 2.5” HDD support |
| Audio | Realtek ALC897 HD Audio |
| Graphics | Intel UHD Graphics |
| Network | 1 × RJ45 (10/100/1000 Mbps), Realtek 8111H |
| Expandable | M.2 E-Key 2230 (WiFi/Bluetooth), Mini PCIe (4G module with SIM slot) |
| OS Support | Windows 10, Windows 11, Linux |

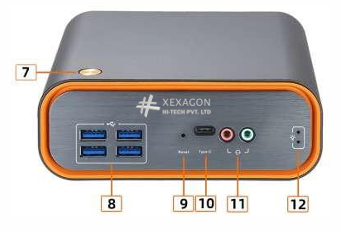

| I/O Ports | 4 × USB 3.0, 4 × USB 2.0, 1 × HDMI 2.1, 1 × DP 1.4, 2 × LAN, 1 × Type-C, 1 × DC-In 12V, 1 × Mic In, 1 × Audio Out, 1 × Reset Button |
| Built-in Socket | 9-Pin USB, SATA & SATAPWR, JATX AT, F-Panel, TPM, Speaker, GPIO, Phoenix Terminal, COM Headers ×2 |
| Display Mode | Dual Display (HDMI + DP), 4K @60Hz |
| Boot Mode | AC Power Recovery, UEFI PXE Boot, Wake-on-LAN, Scheduled On/Off |
| Virtualization | Intel VT-x, VT-d Support |
| Hyper-Threading | Supported |
| Operating Temp. | -10°C to 60°C |
| Working Voltage | DC 12V – 7A |
| ESD Protection | Contact ±2KV, Air ±6KV |
| Storage Temp. | -10°C to 60°C |
| Humidity | 0–95% (Non-condensing) |
Data Sheet
Industrial Box PC is a compact, fanless computing solution designed for rugged environments. It features a durable aluminum enclosure, multiple I/O ports, and reliable performance for 24/7 operations. Ideal for automation, kiosks, and edge computing, it ensures efficient processing, low power consumption, and long-term stability in industrial applications.
