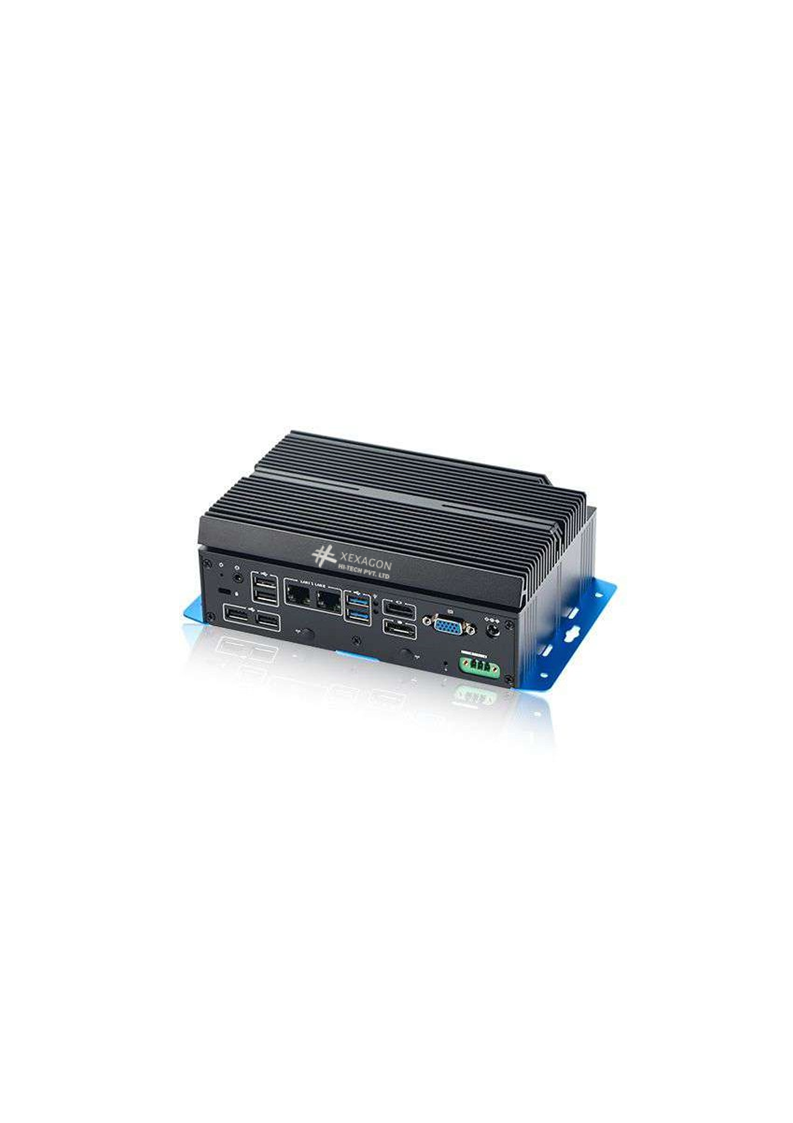

XN-F24 11th-Gen Industrial Mini PC
Out of stock

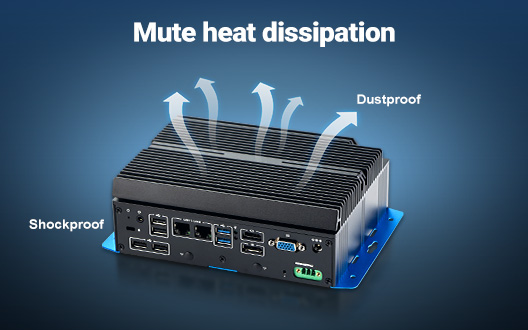

● Industrial rugged design with a fanless cooling system
● 11th Gen Intel® Core™ i3/i5/i7 Processors and Intel® Iris® Xe Graphics

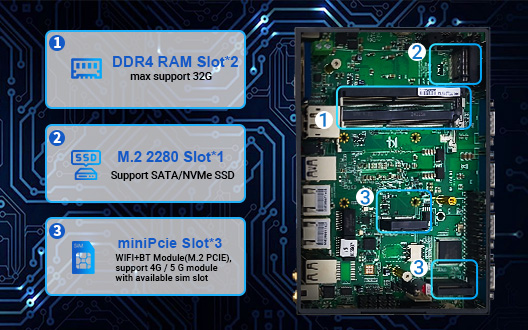

● 2x DDR4L slots up to 64GB RAM, 1x M.2 2280 SATA/NVMe, and 1x 2.5″ SATA for SSD/HDD

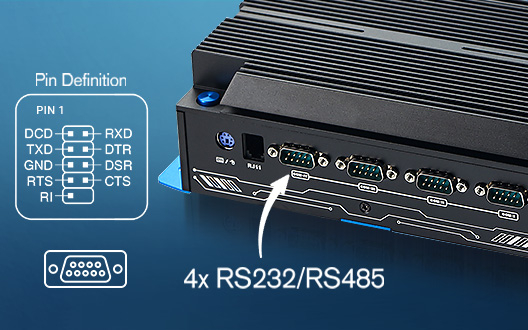

● 4x Serial ports (Optional RS232/RS485)
● Dual Gigabit LAN ports with Intel I226-V and Realtek 8111H chipsets
● Simultaneous triple-display support via 1x HDMI, 1x VGA, and 1x DP port
● 1x M.2 PCIe slot for 4G/5G module or Wi-Fi & Bluetooth, with SIM card support
● OS: Windows 11 / IoT / Linux

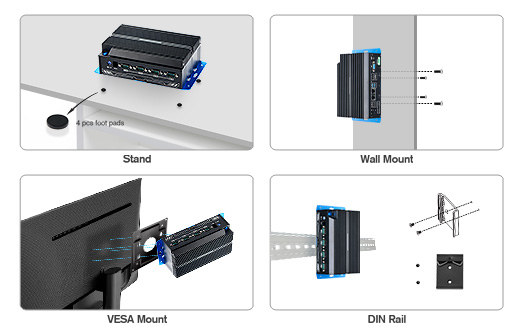

● Supports various mounting methods: Ear, VESA, and Din Rail
Compare
| Category | Specification | Intel Core i5-1155G7 | Intel Core i7-1195G7 |
| Processor | CPU | Intel Core i5-1155G7 (4 Cores / 8 Threads) | Intel Core i7-1195G7 (4 Cores / 8 Threads) |
| Base Frequency | 2.5 GHz | 2.9 GHz | |
| Max Turbo Frequency | 4.5 GHz | 5.0 GHz | |
| Cache | 8 MB Intel Smart Cache | 8 MB Intel Smart Cache | |
| Chipset | Tiger Lake | Tiger Lake | |
| Memory | Technology | 2 × DDR4L Slots | 2 × DDR4L Slots |
| Max Capacity | Up to 32 GB | Up to 32 GB | |
| Storage | M.2 SATA | SSD 128GB / 256GB / 512GB / 1TB | SSD 128GB / 256GB / 512GB / 1TB |
| SATA | HDD 500GB / 1TB / 2TB (Optional) | HDD 500GB / 1TB / 2TB (Optional) | |
| Graphics | GPU | Intel Iris Xe Graphics | Intel Iris Xe Graphics |
| Audio | Audio Chipset | Realtek ALC897 HD Audio | Realtek ALC897 HD Audio |
| Network | LAN | 2 × RJ45 (10/100/1000/2500 Mbps) | 2 × RJ45 (10/100/1000/2500 Mbps) |
| Controller | Intel I226V ×1, Realtek 8111H ×1 | Intel I226V ×1, Realtek 8111H ×1 | |
| Wireless | WiFi + Bluetooth (M.2 E Key 2230, WiFi 6 Supported) | WiFi + Bluetooth (M.2 E Key 2230, WiFi 6 Supported) | |
| 4G Support | Supported (SIM Slot Available) | Supported (SIM Slot Available) | |

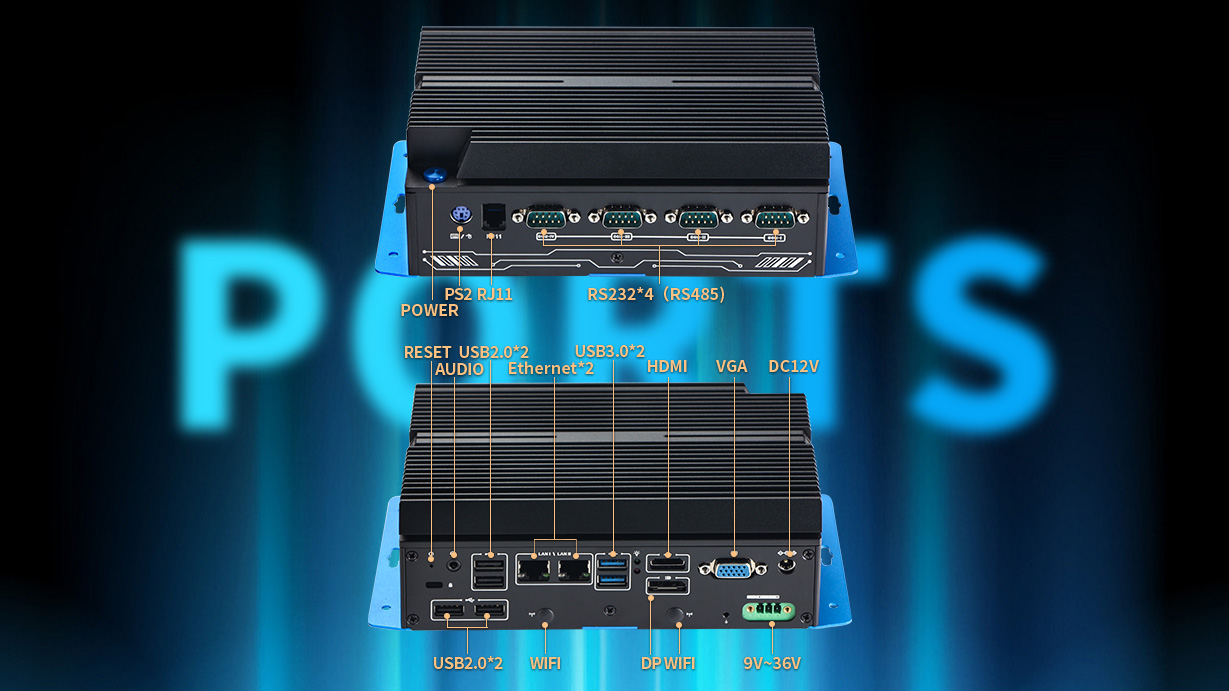

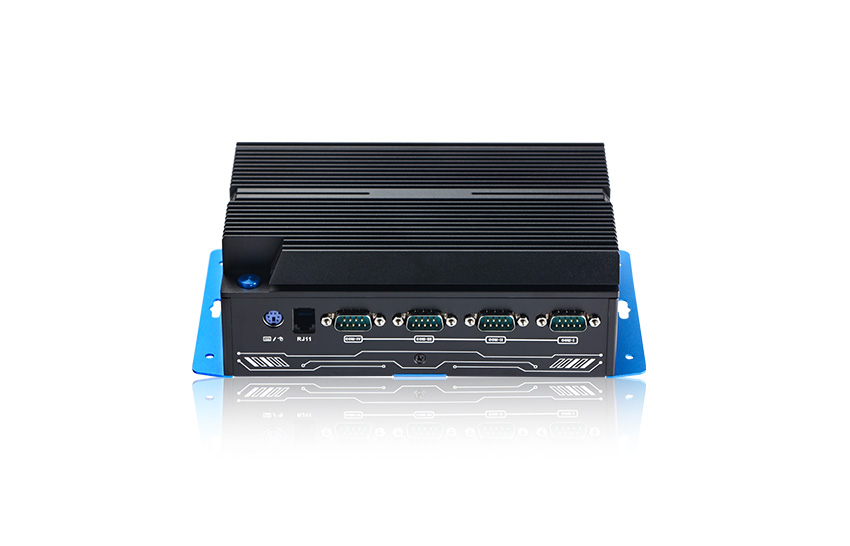

| I/O Interface | Front Ports | 1× PS/2, 1× RJ11, 4× RS232/RS485 COM | Same |

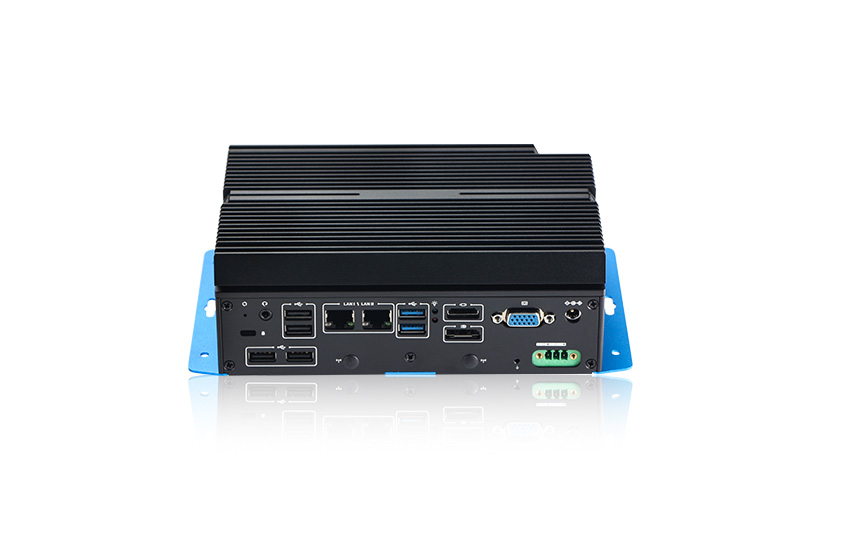

| Rear Ports | 4× USB2.0, 2× USB3.0, 2× LAN, HDMI, DP, VGA, Audio, DC 12V, Power Terminal | Same | |
| Expandable I/O | Internal Ports | TPM2.0, GPIO, USB2.0 Pins, SATA Power, RS232/485 Switch, Phoenix Terminal | Same |
| Module Support | Expansion Slots | M.2 E Key (WiFi), M.2 B Key (3G/4G) | Same |
| Power | Input | AC 100–240V, 50–60Hz | AC 100–240V, 50–60Hz |
| Output | 12V / 5A | 12V / 5A | |

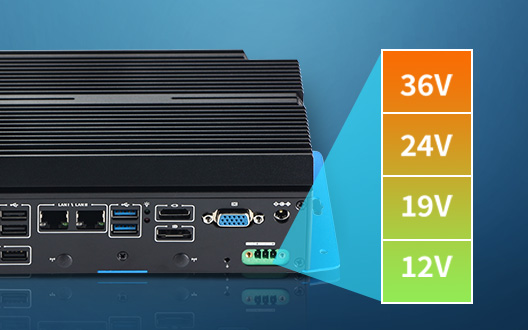

| Wide Voltage | 9–36V (Optional) | 9–36V (Optional) | |
| Operating System | OS Support | Windows / Linux | Windows / Linux |

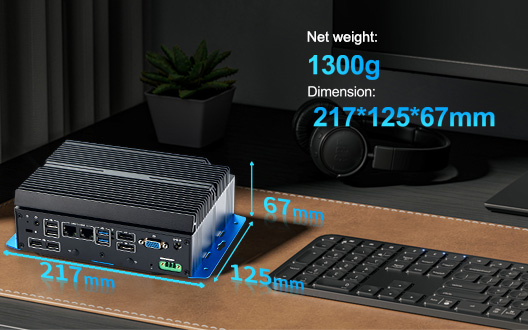

| Physical | Dimensions | 218 × 134 × 65 mm | Same |
| Weight | 1.3 kg | 1.3 kg | |
| Color | Black | Black | |
| Cooling | Passive (Fanless) | Passive (Fanless) | |
| Mounting | Wall / VESA Mount | Wall / VESA Mount | |
| Certification | Compliance | CE,RoHS | Same |
| Environment | Operating Temp | -10°C to 60°C | Same |
| Storage Temp | -10°C to 60°C | Same | |
| Humidity | 0–95% (Non-condensing) | Same |
Data Sheet
The XEXAGON XN-F24 11th Gen rugged mini PC is equipped with high-performance 11th Gen Intel CPUs, offering options for i3, i5, and i7 processors to meet various computational needs. This fanless rugged mini PC features an upgraded enclosure that facilitates superior heat dissipation, ensuring reliable operation even under heavy workloads. With a comprehensive array of interfaces, the XN-F24 industrial rugged mini PC is designed for seamless connectivity and integration in industrial settings.
XEXAGON industrial rugged computer XN-F24 with robust industrial design guarantees dependable 24/7 operation, making it suitable for environments with temperature ranges from -10 to 60 degrees Celsius. This rugged embedded computer stands out as a reliable solution for industries that require both performance and durability.
