XN-F24 Edge Computer
Out of stock
- Industrial-grade with compact design for dustproof and shockproof
- Equipped with the Intel 11th Gen Pentium 7505 processor, main frequency 2.0-3.5GHz
- 4*COM ports, supporting RS232/RS485 protocols
- Integrated PS/2 and RJ11 interfaces to meet multi-peripheral connection
- Dual Gigabit LAN ports with Intel I226-V and Realtek 8111H chipsets
- Simultaneous triple-display support via 1x HDMI, 1x VGA, and 1x DP port
- 1*M.2 E KEY slot and 1*M.2 B KEY slot for expansion
- Supports 19-24V wide voltage input
- OS：Windows 10/Windows 11/linux
- Supports various mounting methods: Ear, VESA, and Din Rail
Compare
| Category | Parameter | Details |
| Processor | CPU | Intel Pentium 7505 (2 Cores / 4 Threads) |
| Base Frequency | 2.00 GHz | |
| Max Turbo Frequency | 3.50 GHz | |
| Cache | 4 MB Intel® Smart Cache | |
| Chipset | Tiger Lake | |
| Memory | Technology | 2 × SO-DIMM DDR4 Slots |
| Max Capacity | Up to 32GB | |
| Storage | M.2 SATA | 128GB / 256GB / 512GB / 1TB SSD |
| SATA | 500GB / 1TB / 2TB HDD (Optional) | |
| Audio | Audio Chipset | Realtek ALC897 (HD Audio) |
| Network | LAN | 2 × RJ45 (10/100/1000/2500 Mbps) |
| Controller | Intel I226V ×1, Realtek 8111H ×1 | |
| Wireless | M.2 E-Key 2230 (WiFi + Bluetooth, WiFi 6 supported) | |
| M.2 B-Key (3042/3052) for 3G/4G Module (SIM supported) | ||

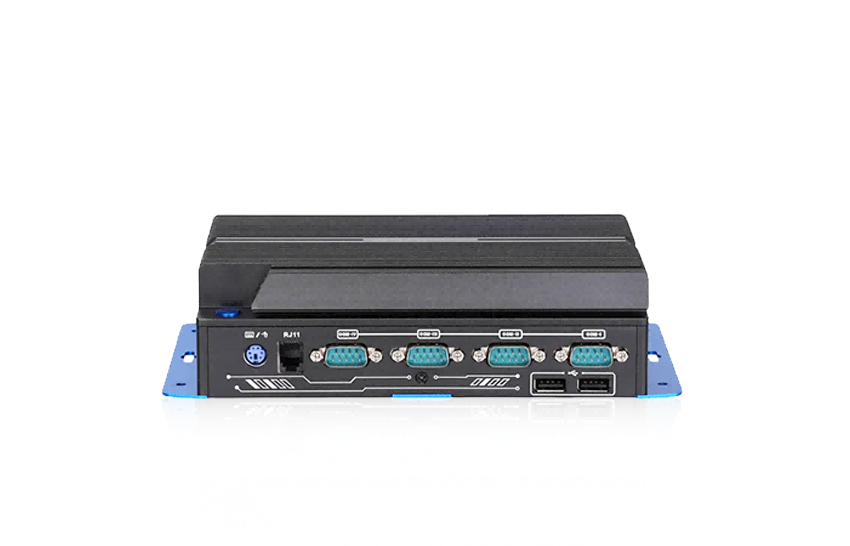

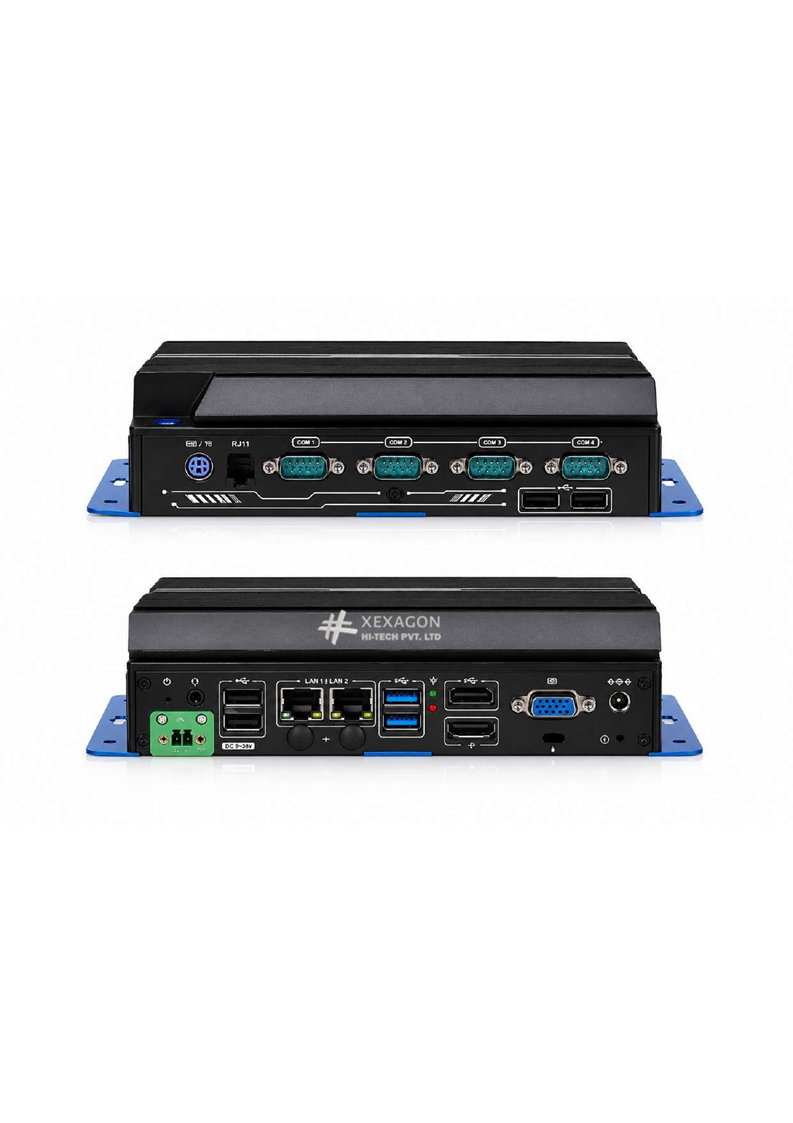

| I/O Interface (Front) | Ports | RJ11 ×1, PS/2 Combo ×1 |
| DB-9 RS-232/485 ×4 | ||
| USB 2.0 ×2 | ||

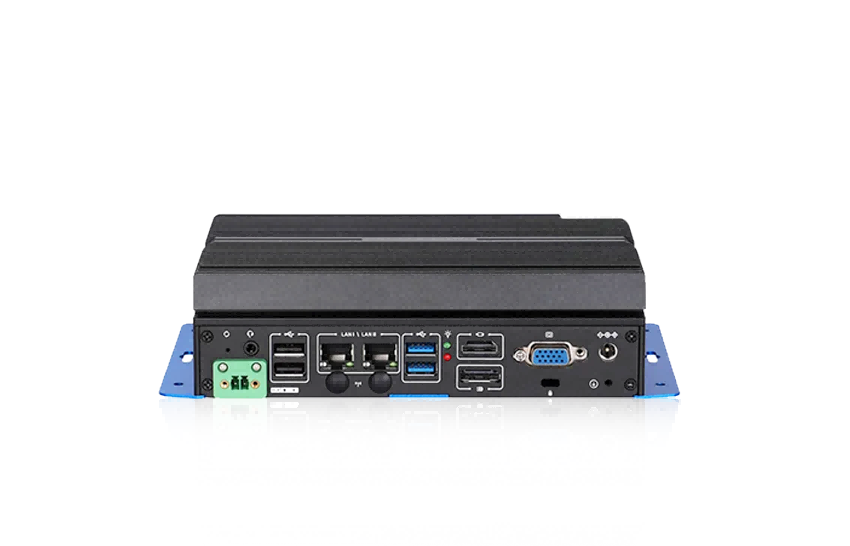

| I/O Interface (Rear) | Ports | USB 3.0 ×2, USB 2.0 ×2 |
| HDMI 2.0 ×1, DP 1.4 ×1, VGA ×1 | ||
| LAN ×2 | ||
| DC-IN 12V ×1 | ||
| BIOS Reset Button ×1 | ||
| 3.5mm Audio Combo ×1 | ||
| 3-Pin Power Terminal ×1 | ||
| Expandable I/O | Internal Headers | TPM 2.0, GPIO, USB 2.0, SATA Power, LVDS, RS232/485 Switch |
| Multiple PIN Headers (Detailed Industrial Expansion Support) | ||
| Module Support | Slots | M.2 E-Key (WiFi/BT) + M.2 B-Key (3G/4G) |
| Power | Input | 12V DC |
| Output | 12V / 5A | |
| Operating System | OS Support | Windows 10 / Windows 11 / Linux |
| Physical | Dimension | 218 × 134 × 65 mm |
| Weight | 1.3 Kg | |
| Color | Black | |
| Cooling | Passive Cooling (Fanless) | |
| Mounting | Bracket Mount / VESA Mount | |
| Certification | Compliance | CE,RoHS |
| Environment | Operating Temp | -10°C to 60°C |
| Storage Temp | -10°C to 60°C | |
| Humidity | 0–95% (Non-condensing) |
Data Sheet
XEXAGON XN-F24 is industrial rugged embedded computer features an aluminum alloy shell with fully enclosed design, achieving dustproof and shockproof performance,Equipped with Intel Pentium 7505 processor. Boasting practical expansion and stable operation, this mini PC comes with comprehensive interfaces, including 4*COM ports (supporting RS232/RS485), dual Gigabit LAN ports, PS/2, RJ11, and triple-display ports, ensuring effortless connectivity in industrial environments.
With 1*M.2 E KEY and 1*M.2 B KEY slots for expansion, it supports 19-24V wide voltage input, it is a reliable solution for industrial automation, smart terminals and IoT scenarios, providing stable support for daily operation
