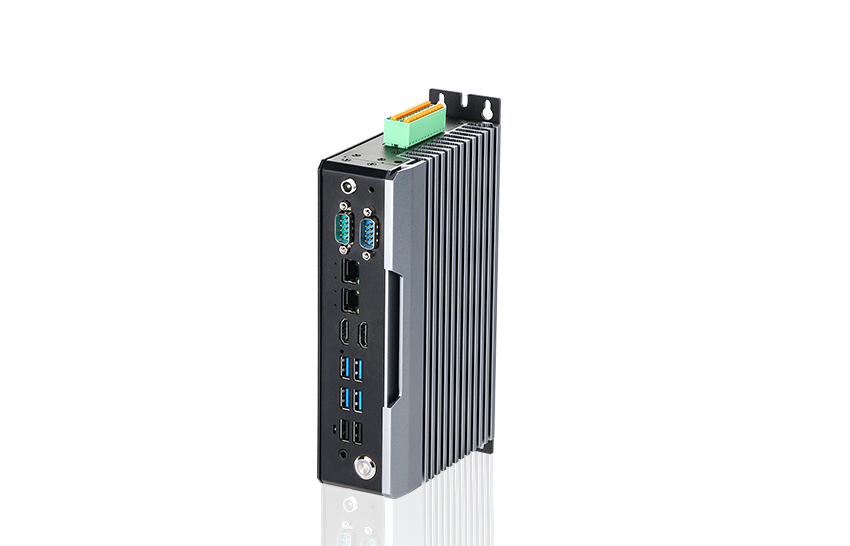

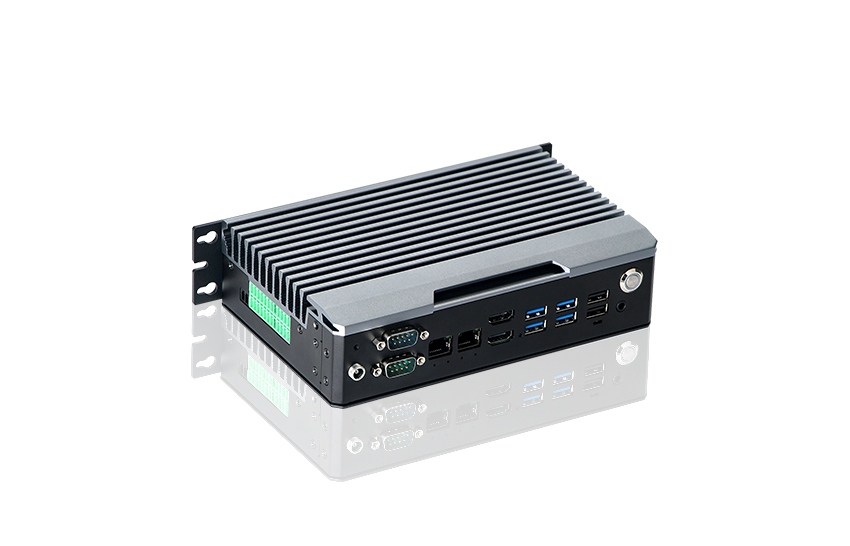

XN-F27H Industrial Computer
Out of stock
- All-aluminum fanless fully enclosed design
- Single-side concentrated I/O layout for easy cabling & maintenance
- 11th Gen Intel® Core™ i3/i5/i7 Processors and Intel® Iris® Xe Graphics
- 6×COM ports supporting RS232/RS485
- 4×LAN ports, 1 port supports EtherCAT
- 6×USB ports (4×USB3.0 + 2×USB2.0)
- 1×GPIO + 2×VCC/GND, 8DI+8DO with opto-isolation
- DC 12V~24V Wide Voltage Input with Lockable Connector
- Supports Win10/Win11/Linux
- Supports wall, panel, DIN rail, rack mounting
Compare
| Category | Parameter | Details |
| Processor | CPU | Intel® Core i3 / i5 / i7 (11th Gen) |
| Cores / Threads | 4 Cores / 8 Threads | |
| Cache | 8 MB Intel® Smart Cache | |
| Memory | Technology | 2 × SO-DIMM DDR4 Slots |
| Max Capacity | Up to 64GB | |
| Storage | M.2 Slot | M.2 2280 (SATA / NVMe) |
| SATA | Supports 2.5-inch HDD / SSD Expansion | |
| I/O Interface | COM Ports | 6 × COM (RS232 / RS485) |
| LAN | 4 × LAN (1 Port supports EtherCAT) | |
| USB | 4 × USB 3.0 + 2 × USB 2.0 | |
| GPIO | 1 × 16-Pin GPIO | |
| Power | Input Voltage | DC 12V ~ 24V |
| Software | OS Support | Windows 10 / Windows 11 / Linux |
| Environment | Operating Temp | -10°C to 60°C (14°F to 140°F) |
| Storage Temp | -10°C to 60°C (14°F to 140°F) | |
| Operating Humidity | 0–95% (Non-condensing) | |
| Storage Humidity | 0–95% (Non-condensing) |
Data Sheet
XN-F27H is a heavy-duty industrial embedded computer designed for mission-critical industrial environments. It adopts a fully enclosed aluminum alloy fanless chassis with passive thermal design and centralized I/O layout, ensuring dustproof, anti-interference, and 24/7 uninterrupted operation.
Powered by 11th Gen Intel Core i3/i5/i7 processors, it supports up to 64GB system memory, and versatile industrial I/O including 6×COM ports (RS232/RS485 configurable), 4×Gigabit Ethernet ports, dedicated GPIO interface, and 1×CAN BUS 2.0 industrial fieldbus.
With wide voltage input and wide temperature operation, it is perfectly suited for industrial automation, production line inspection, smart parks, IoT gateways and intelligent security, driving industrial digital transformation.
