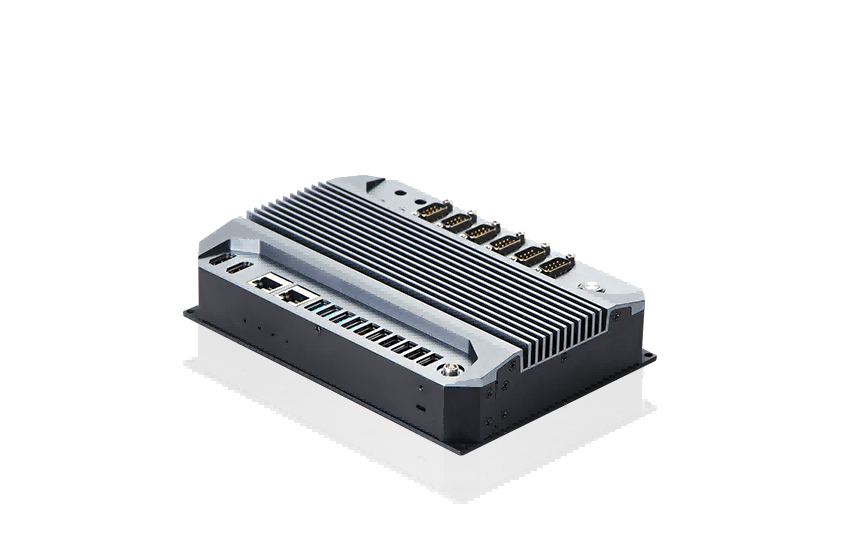

XN-F28 Embedded Controller
Out of stock
- All-aluminum fanless fully enclosed design
- Front-facing centralized I/O design
- 12th Gen Intel® Core™ i3/i5/i7 Processors
- 6×COM Ports (4×RS232/485 Switchable + 2×RS232)
- 2×Realtek 8111H Gigabit Ethernet NICs
- 10×USB ports (4xUSB3.0, 6xUSB2.0)
- Dual M.2 Slots, Support WiFi/Bluetooth/4G/5G, SIM Card Expansion
- DC 12V~24V Wide Voltage Input with Lockable Connector
- Supports Win10/Win11/Linux OS
- Wall-mount / Panel-mount installation
Compare
| Category | Parameter | Details |
| Processor | CPU | Intel® Core i5 (12th Gen) |
| Cores / Threads | 8 Cores / 12 Threads | |
| Cache | 12 MB Intel® Smart Cache | |
| Memory | Technology | 2 × SO-DIMM DDR4 Slots |
| Max Capacity | Up to 64GB | |
| Storage | M.2 Slot | M.2 (SATA / NVMe) |
| SSD | M.2 2280 SATA / NVMe Supported | |
| SATA | Supports 2.5-inch HDD / SSD Expansion | |
| Graphics | GPU | Intel® UHD Graphics |
| Audio | Audio | Realtek ALC897 (HD Audio) |
| I/O Interface | USB | 4 × USB 3.0, 6 × USB 2.0 |
| COM Ports | 4 × RS232/485 + 2 × RS232 | |
| LAN | 2 × LAN | |
| HDMI | 2 × HDMI 2.1 | |
| Power | Input Voltage | DC 12V ~ 24V |
| Operating System | OS Support | Windows 10 / Windows 11 / Linux |
| Environment | Operating Temp | -10°C to 60°C (14°F to 140°F) |
| Storage Temp | -10°C to 60°C (14°F to 140°F) | |
| Operating Humidity | 0–95% (Non-condensing) | |
| Storage Humidity | 0–95% (Non-condensing) |
Data Sheet
XN-F28 is an industrial Embedded Controller with high reliability, rich expansion, and stable 24/7 operation, featuring fanless dustproof design, strong anti-interference, and front-facing centralized I/O layout.Equipped with 6x COM ports (4×RS232/485 + 2×RS232), 2x Gigabit Ethernet, and 10x USB ports, plus wide voltage DC input (12V~24V) with lockable connector to meet diverse connection needs.
It is mainly applied to self-service terminals and KIOSK scenarios, such as self-service payment, ticket vending, information inquiry, and industrial automation, providing reliable and efficient operation support.
