XNHT-ISF202
XNHT-ISF202 - Image 2
XNHT-ISF202 - Image 3
, ,

XNHT-ISF202

Compare

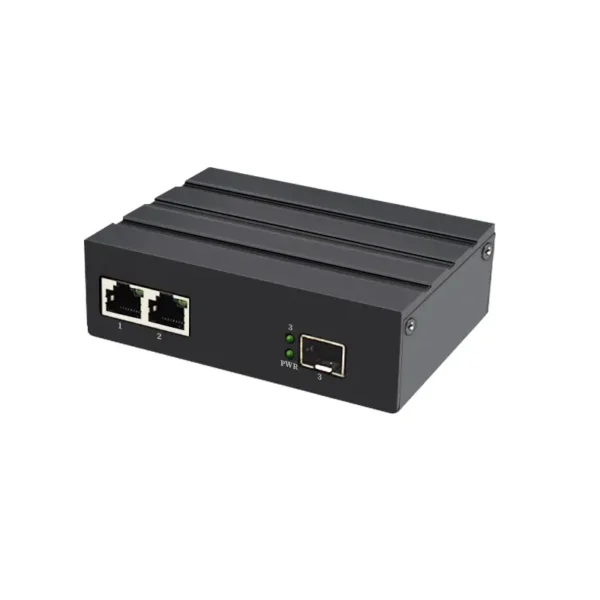

The ISF202  is a 3-port unmanaged industrial Ethernet switch designed for reliable performance in demanding environments. It features 2 x 10/100Base-TX RJ45 Ethernet ports and 1 x 100Base-SX/LX SC optical port, providing flexible networking capabilities. This switch is ideal for a wide range of industrial applications, including industrial control automation, road traffic management, building automation systems, and computer room monitoring. The ISF201-1005 operates stably and efficiently, making it an essential component for establishing a robust Industrial Internet of Things (IIoT) infrastructure.

₹2,112.00 ₹2,746.00

Inquire on WhatsApp
Compare
Add to quote

The ISF202  is a 3-port unmanaged industrial Ethernet switch designed for reliable performance in demanding environments. It features 2 x 10/100Base-TX RJ45 Ethernet ports and 1 x 100Base-SX/LX SC optical port, providing flexible networking capabilities. This switch is ideal for a wide range of industrial applications, including industrial control automation, road traffic management, building automation systems, and computer room monitoring. The ISF201-1005 operates stably and efficiently, making it an essential component for establishing a robust Industrial Internet of Things (IIoT) infrastructure.

Categories: , ,
Standards and protocols IEEE802.310Base-T
IEEE802.3u100Base-TX
IEEE802.3z100Base-SX/LX standards
IEEE 802.3x flow control
Interface information RJ45 port: 2 10/100M Base-T X port
Single-mode SC optical port: 1 100Base-X optical port
Mechanical properties Shell material: metal shell
Appearance dimensions (length*depth*height): 108 mm× 80 mm× 33 mm
Installation method: DIN rail type
Heat dissipation method: natural cooling, no fan
Weight: < 550 G
Environmental properties Working temperature: -40 ℃ ～+ 85 ℃
Storage temperature: -40 ℃ ～+85℃
Relative humidity: 5% ~ 95% (non-condensing)
Exchange properties Bandwidth: 1.5Gbps
Packet forwarding rate (whole machine) : 0.8 Mpps
Exchange method: store-and-forward
MAC table : 2K
Case space : 1mb
Power supply Input voltage: DC 12 V-57V (dual redundant)

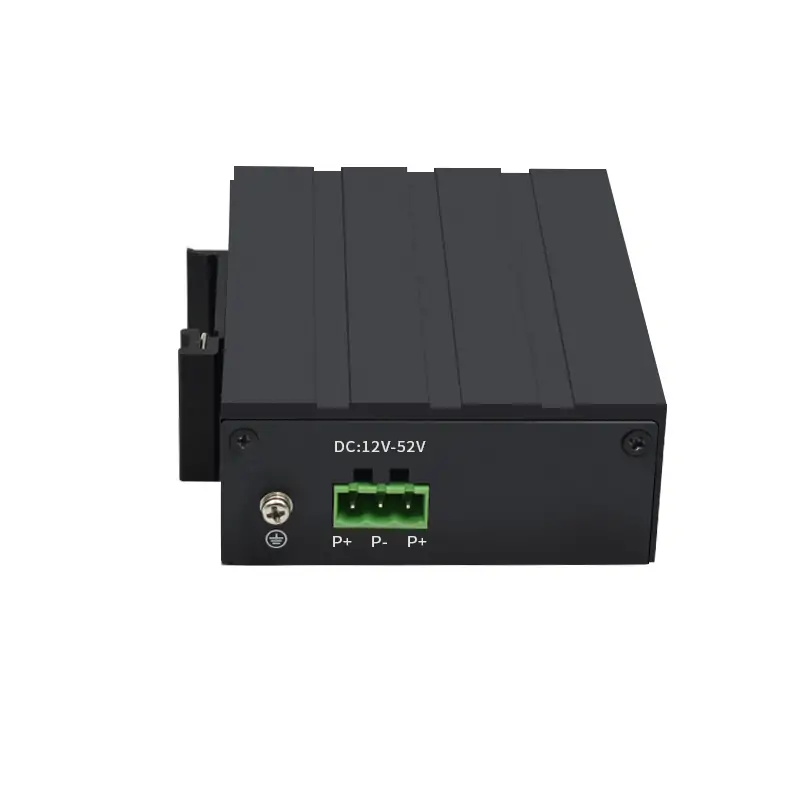

Power interface: 3- core Phoenix terminal
Power supply protection: positive and negative pole misconnection protection
Power consumption: < 5 W
indicator light Port light (fluctuation switch control):Indicator light: 100M Link/ACT green;
Power light: green
      Security properties Shell protection: IP40
Surge impact IEC61000-4-5 : (optional)Signal end: common mode ± 4KV, differential mode ± 2KVPower supply end: common mode ± 4KV, differential mode ± 2KV
Anti-static interference IEC61000-4-2 : contact discharge ± 8KV, air discharge ± 15KV
Pulse immunity IEC61000-4-4 : signal terminal: ± 2KV, power terminal: ± 2KV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
MTBF: 100000 hours
warranty period 5 years
