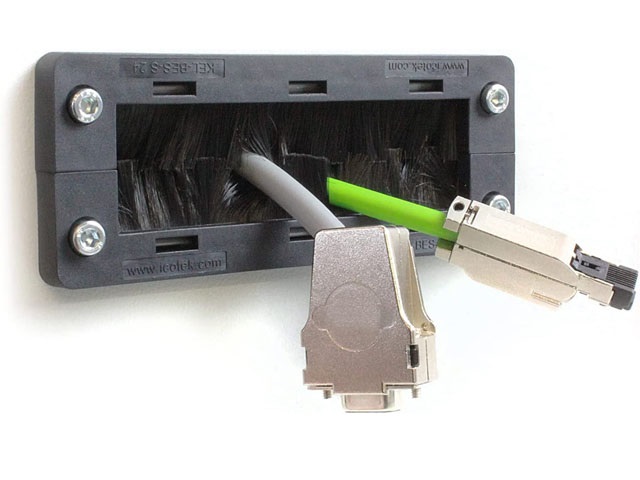

XNL-BES Brush Plate
XNL-BES Brush Plate - Image 2
, ,

XNL-BES Brush Plate

Compare

Delivery Time : 3-4 Weeks

XNL-BES Splits Brush Plate

Material : PA

Colour : Black

Temperature : -20° C to 90° C (Static)

Property : Halogen Free Silicon Free

Frame Height : 10mm

₹3,000.00 ₹4,500.00

Inquire on WhatsApp
Compare

XNL-BES Brush Plate

Part No. : XNL-BES-24

Part No. : XNL-BES-16

Part No. : XNL-BES-10

Part No. : XNL-BES-06

Part No. : XNL-BES-24-2M

Part No. : XNL-BES-S24

Part No. : XNL-BES-S16

Part No. : XNL-BES-S10

XNL-BES Brush Plate

Part No. : XNL-BES-24

Part No. : XNL-BES-16

Part No. : XNL-BES-10

Part No. : XNL-BES-06

Part No. : XNL-BES-24-2M

Part No. : XNL-BES-S24

Mounting options Screw type mounting, Riveting
Length 147 mm
Width 58 mm
Height 10 mm
Mounting height 10 mm
Cut-out size 112 × 36 mm
No. of screw holes 4
Diam. of screw holes 5.8 mm



Part No. : XNL-BES-S16

Mounting options Screw type mounting, Riveting
Length 120 mm
Width 58 mm
Height 10 mm
Mounting height 10 mm
Cut-out size 86 × 36 mm
No. of screw holes 4
Diam. of screw holes 5.8 mm



Part No. : XNL-BES-S10

Mounting options Screw type mounting, Riveting
Length 100 mm
Width 58 mm
Height 10 mm
Mounting height 10 mm
Cut-out size 65 × 36 mm
No. of screw holes 4
Diam. of screw holes 5.8 mm

Data Sheet

Download Document

Test / Quality Data

Download Document

Drawing

Download Document
